Solutions: Commercial Water Purification & Commercial Reverse Osmosis Systems
RO Systems are available with the
following options: chlorine/chemical, hard water, sediment and iron
pretreatment, water storage tanks, re-pressure pumps, and uv disinfection. Make
the most of your water with a reverse osmosis water filter from RainDance Water
Systems.
Commercial reverse osmosis systems
are suitable for applications such as glassware, rinsing, beverage, solution
preparation, and numerous other scientific, commercial and industrial
applications. Water purified by reverse osmosis has had often greater than 95%
of dissolved ions, and 99% of most contaminants removed. We offer state of the
art reverse osmosis systems from stainless steel wall mount to vertical and

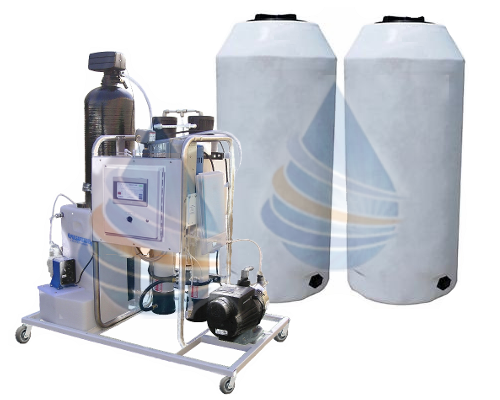

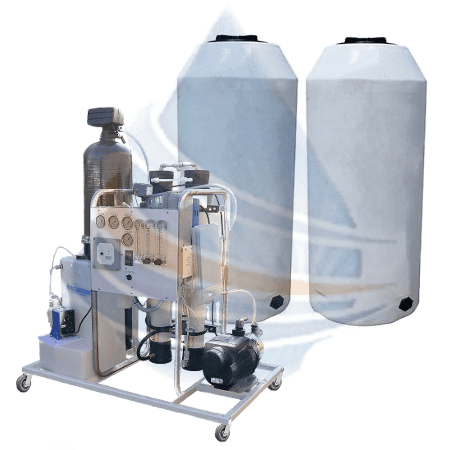

horizontal mount series to pre-package skid mount purification systems.
High Performance Reverse
Osmosis Signature State Of The Art Stainless Steel TSM RO Series
Stainless steel
is used throughout; in frame, pressure vessels and fastening hardware to
provide the structural strength and corrosion resistance appropriate for a
commercial appliance.

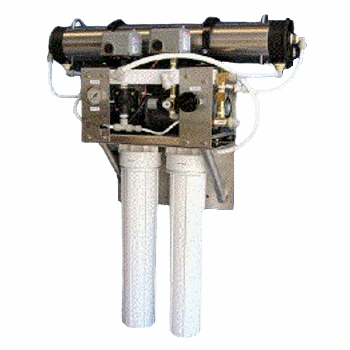

Perfect Choice -
compact wall mount water filter solutions for coffee shops, cafe's,
restaurants, spot-free rinse, labs, and small business.
Wall Mount / Shelf Mount
400gpd - 1200gpd Water Production
TSM Series
Commercial Reverse
Osmosis Water Purifiers
TSM QUALITY
COMMERCIAL R.O. - User Friendly !
TSM series of commercial Reverse Osmosis water purifiers built to suit the
needs and requirements of commercial pure water users.
This includes restaurants, coffee stores, convenience stores, micro breweries,
supermarket produce and food preparation operations, misting and
humidification systems, car wash facilities, and many other businesses that
must have consistent high quality water for their daily operations. The key
factors of reliability, serviceability, and consistent performance with
minimum user intervention are achieved in the solid design of the TSM systems.
Stainless steel is used throughout; in frame, pressure vessels and fastening
hardware to provide the structural strength and corrosion resistance
appropriate for a commercial appliance.
The TSM system design is optimized for either shelf mount or wall mount
installation. The three models; 400 GPD, 800 GPD and 1200 GPD all
occupy the same very compact footprint. This allows flexibility in
accommodating the limited space available in most commercial utility equipment
locations. Quick connect tube fittings on all system ports further simplifies
installation and service. Most important, all TSM models incorporate the most
reliable combination of proven reverse osmosis hydraulic design and state of
the art Thin Film membrane elements to provide the long term performance
expected by commercial users.
TSM FEATURES
All TSM Reverse Osmosis systems include the
following important quality features.
• Stainless Steel Frame & Pressure Vessels
• Thin Film Composite Membranes
• High Performance 3/4 HP Motors
• Positive Displacement Rotary Vane Pump
• Integral Hydraulic Manifold Assembly
• Fast Flush Control
• Low Feed Pressure Cutout Switch
• Tank Pressure Control Switch
• Delrin Orifice or Teflon Tube Flow Control
• Feed Inlet Solenoid Valve
• SS Needle Valve Pressure Control
• Product Tank Pressure Relief Valve
• Includes: TDS Meter
-Tester. The Only Way To Know If Your Reverse Osmosis RO Membrane Is
Performing Correctly - Tests for TDS - Total Dissolved Solids. A Must For All
RO System Owners. Compare Incoming Feed Water To Treated Water. TDS is the sum
of the mineral salts in water and if too high can result in objectionable
taste, cloudy ice, interference with the flavor of foods and beverages and
scale left behind in pipes, machinery, glass, etc.
• All Systems Wet Tested Before Shipping
Operating Parameters: Max
TDS-2500ppm, Total iron is less than 0.3ppm, Manganese is less than 0.05ppm,
Water hardness below 5 gpg.
FREE SHIPPING ON ALL TSM
REVERSE OSMOSIS WITHIN THE CONTINENTAL UNITED STATES.
OVERSEAS SHIPPING AVAILABLE
OR HAVE YOUR FREIGHT FORWARDER PICK-UP
NO CHARGE FOR EXPORT CRATING
-
FREE Reverse Osmosis
Pretreatment Limited Time Offer:
- Dual Sediment &
Carbon Pre-Filter System Added FREE With Every TSM Reverse Osmosis
Order.
- Order any TSM SS
Commercial Reverse Osmosis and we will include our dual sediment and
carbon filter pretreatment system at No Charge.NOT VALID WITH ANY
OTHER OFFER - SPECIAL OFFER ENDS SOON!
- Included with TSM
Reverse Osmosis orders only
-
- Provides Reverse
Osmosis Membrane Protection from Premature Fouling (loss of rejection &
production).
Consists of (1) Sediment Filter Cartridge + (1) Carbon Block Filter
Cartridge.
Sediment Filter is rated @ 5 microns and filters Suspended Solids (dirt,
rust, sediment, etc).
Carbon Filter Significantly Reduces Chlorine and Organic Compounds.
Wall Mount Bracket & Filter Housing Wrench Included.
INCLUDED FREE
WITH EVERY TSM SERIES REVERSE OSMOSIS SYSTEM
|
TSM Series
Commercial Reverse
Osmosis Specifications
Signature Stainless Steel
TSM Series
Commercial Reverse Osmosis Price Guide
Need A Quote ? We Offer
Same Day TSM Series Reverse Osmosis Price Quoting - <CLICK
HERE>
Need A Quote ? We Offer
Same Day TSM Series Reverse Osmosis Price Quoting - <CLICK
HERE>
TSM Series
SS Reverse Osmosis can be
used with your existing atmospheric storage tank & pressure tanks Or choose
from our options list below
- TSM REVERSE OSMOSIS
STORAGE TANKS:
- Needed to store water
from reverse osmosis system
- Note: Our TSM reverse
osmosis tanks include complete float switches for storage tanks (top tank for
shut off)
-
- Approx. 35"
dia x 81" ht. 300 Gallon Storage Tank
- (Designed to fit
through standard doorways)
-
|
-
- Model: TK-300/Float
- Price: $995.00ea
*Free Shipping
-
[Add to Cart]
[View Cart]
|
-
- Approx. 31"
dia x 72" ht. 200 Gallon Storage Tank
- (Designed to fit
through standard doorways)
|
-
- Model: TK-200/Float
- Price: $895.00ea
*Free Shipping
-
[Add to Cart]
[View Cart]
|
- TSM REPRESSURE
SYSTEM:
- Draws water out of the
TSM storage tank to your application
-
- Re-pressure pump
rated @ 10gpm (110v)
- Designed for
atmospheric storage tanks listed above.
|
-
- Model: RP-10GPM
- Price: $695.00ea
*Free Shipping
-
[Add to Cart]
[View Cart]
|
- TSM REVERSE OSMOSIS
HYDRO-PNEUMATIC PRESSURIZED STORAGE TANKS:
- No room for a storage
tank and re-pressure pump? Use these pre-charged pressure tanks when you have
limited space
- requirements and
lower water volume demand. Perfect for labs, offices, wet bar, spot free
rinse, and more
-
- 30
gallon hydro-pneumatic pressure tank. 18 gallons in storage.
- Dimensions 16”
diameter x 44” high. Shut off valve included.
- Volume is based on a
50psi shutoff and 15psi pre-charge
|
-
- Model:
PT-30
- Price: $650.00ea
*Free Shipping
-
[Add to Cart]
[View Cart]
|
-
- 40 gallon
hydro-pneumatic pressure tank. 24 gallons in storage.
- Dimensions 16”
diameter x 57” high. Shut off valve included.
- Volume is based on a
50psi shutoff and 15psi pre-charge
|
-
- Model:
PT-40
- Price: $750.00ea
*Free Shipping
-
[Add to Cart]
[View Cart]
|
-
- 80
gallon hydro-pneumatic pressure tank. 48 gallons in storage.
- Dimensions 25”
diameter x 56” high. Shut off valve included.
- Volume is based on a
50psi shutoff and 15psi pre-charge
|
-
- Model:
PT-80
- Price: $850.00ea
*Free Shipping
-
[Add to Cart]
[View Cart]
|
Reverse Osmosis Commercial
Water Purification
TV Series commercial reverse
osmosis systems are designed for applications such as glassware, rinsing,
beverage, solution preparation, and numerous other scientific, commercial and
industrial applications. Water purified by reverse osmosis has had often greater
than 95%of dissolved ions, and 99% of most contaminants removed.
TV Series commercial reverse
osmosis applications include: Agriculture, Livestock, Green Houses- Orchards,
Groves, Food, Ice,and Beverage Industry, Bottled Water Stores, Pharmaceutical,
Electronic Industry, Process Water, Chemical Industry, Electroplating Industry,
Electrical Power Generating, Polymer Solutions and more.
Vertical Mount 2,000gpd -
12,000gpd Water Production
TV Series
Commercial / Industrial
Reverse Osmosis Water Purifiers
TV SERIES QUALITY
COMMERCIAL REVERSE OSMOSIS - User Friendly, Compare Standard Features Listed
Below:

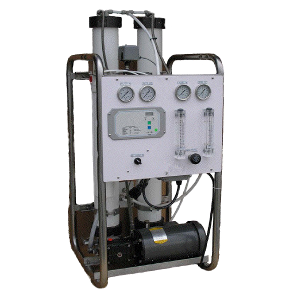

TV series are designed for
commercial /industrial applications where floor space is at a premium. All major
system elements are mounted within a sturdy tubular stainless steel frame,
welded for long term rigidity and open for easy access to all components. The TV
system is a compact, heavy duty R.O. water purifier for users requiring 2000 to
12000 gallons per day water production. TV systems are fully equipped with the
instruments and controls needed for reliable long term operation.
All 2,000gpd Through 12,000gpd TV Series Reverse Osmosis Systems Include The
Following Features:
.. Stainless steel frame, structural ABS control panel
..
On / Off Switch
..
Float Switch For Atmospheric Tank
.. 20” Prefilter
.. Quick connect brine and product connections
.. Feed and membrane vessel pressure gauges
.. Product water flowmeter
.. Brine and recirculation flow meters with integral needle valves
.. Portable Water
quality monitor:
The HI 98130 Combo waterproof tester offer
high accuracy pH, EC/TDS and temperature measurements in a single tester! No
more switching between meters for your routine measurements. The waterproof
Combo (it even floats) has a large easy-to-read, dual-level LCD and automatic
shut-off. pH and EC/TDS readings are automatically compensated for the effects
of temperature (ATC). This technologically advanced tester has a replaceable pH
electrode cartridge with an extendable cloth junction as well as an EC/TDS
graphite electrode that resists contamination by salts and other substances.
This gives these meters a greatly extended life. Your tester no longer needs to
be thrown away when the pH sensor is exhausted.
The EC/TDS conversion factor is user selectable as is the temperature
compensation coefficient (ß). Fast, efficient, accurate and portable, the Combo
pH, EC/TDS and temperature tester brings you all the features you've asked for
and more!
.. Conductivity water
quality monitor
.. Low pressure cut off
.. High pressure switch
.. Patented PureFlush
membrane flush feature
.. Low energy, thin film membrane element(s)

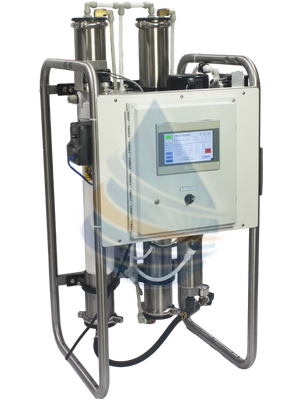

.. "The TV series of R.O. water treatment systems are equipped with a
microprocessor based controller which monitors several functional conditions and
regulates operation of the high pressure pump and control valves. The controller
is connected to sensors which, depending on their state, allow the cyclic
production of purified water or prevent operation due to abnormal conditions.
The standard configuration of the controller monitors feed water supply pressure
for minimum level, product water storage tank level for system start/stop
conditions and product water conductivity for maximum set point value and for
digital front panel display. Additional optional parameters that the controller
is capable of monitoring include main pump high pressure set point, low feed
water tank level and membrane flush cycle occurrence and duration. Front panel
buttons and digital display allow operator adjustment of set points and flush
parameters."
SPECIFICATIONS:
.. Dimensions: 22”W x 25”D x 49”H (2-4KGPD), 29”W x 25”D x 49”H (6-12KGPD)
.. Weight: 140 -200 lbs. depending on model
.. Output*: TV-2000, 4000, 6000, 8000, 10000, & 12000 GPD models
.. Membrane: Low energy, high rejection 4040 thin film type
.. Dissolved Solids Rejection: 98%
.. Prefilter: 10 micron polypropylene depth type
.. Power Req.: 120V, 1 Ph. to 460V 3 Ph.
.. Connections: Feed - 3/4”FPT, product and tank - 1/2” tube
.. Operating Parameters: Max
TDS-5000ppm, Total iron is less than 0.3ppm, Manganese is less than 0.05ppm,
Water hardness below 5 gpg.
.. FREE Shipping within the
continental US
TV Series
Commercial Reverse
Osmosis Specifications
All 2,000gpd Through
12,000gpd TV Series Reverse Osmosis Systems Include Custom Features Listed Above
Need A Quote ? We Offer Same
Day TV-Reverse Osmosis Price Quoting - <CLICK
HERE>
Need A Quote ? We Offer Same
Day TV-Reverse Osmosis Price Quoting - <CLICK
HERE>
COMMERCIAL / INDUSTRIAL
REVERSE OSMOSIS WATER FILTRATION
Large Volume Industrial
Water Treatment
RainDance Water
Systems specializes in creating specific RO systems to meet unique customer
needs. The Horizontal product line allows for large volumes and specialized
water treatment. These custom engineered systems can handle a broad range of
industrial, commercial and agricultural applications. For a custom
system, please
click here to submit information on
your water quality application and we will contact you with more information.
Output: 24,000-1,000,000 gal/day Ideal for: Surface, Well, City, and Brackish
Water
Commercial High Capacity TH
Series Commercial Reverse Osmosis 12,000 to 24,000 GPD (8-16gpm) Pricing Guide
(Pricing includes all State
Of The Art standard features listed below)
Commercial High Capacity TH
Series Commercial Reverse Osmosis 12,000 to 24,000 GPD (8-16gpm) Pricing Guide
TH Series
High Capacity
Commercial Reverse Osmosis 12,000-24,000gpd
TH Series Request
Information & Price Quote
All TH Series commercial
reverse osmosis have caster wheels for easy positioning and/or relocation.
INDUSTRIAL REVERSE OSMOSIS
WATER FILTRATION
Industrial High Capacity TP
Series Industrial Reverse Osmosis 24,000 to 160,000 GPD (16-111gpm) Pricing
Guide
(Pricing includes all State
Of The Art standard features listed below)
Industrial High Capacity TP
Series Industrial Reverse Osmosis 24,000 to 160,000 GPD (16-111gpm) Pricing
Guide
-
TP Series
High Capacity
Industrial Reverse Osmosis 24,000-160,000gpd
TP Industrial Series
Request Information & Price Quote
TP Series- Industrial RO
Delivery is available throughout Nevada, Arizona, Utah, and California.
- Reverse osmosis
applications include:
- Commercial / Industrial
Water Treatment From 400gpd to 1,000,000gpd
- Agriculture-Dairy,
Cattle, Horse, Swine
- Green Houses- Orchards,
Groves
- Food & Beverage
Industry
- Pharmaceutical
- Electronic Industry
- Process Water
- Chemical Industry
- Electroplating Industry
- Electrical Power
Generating
- Polymer Solutions
- And many More.......
-
- RainDance Water
Systems can assist you in all of your
water treatment needs. There's no need to go anywhere else. With over 80 years
of combined experience in the water treatment business our support team can
quickly & accurately answer all of your water filtration questions. Our
resources include engineers and water treatment professionals which utilize
virtually all known water treatment processes assuring our customers of
the most economical, dependable, and environmentally friendly solutions. Our
water treatment systems range from residential, light commercial and large
commercial / industrial operations.
Our customers include numerous
companies, manufacturers, cattle & dairy farms, and households around the world
- United States, Spain, Japan, Canada, Taiwan, Malaysia, United Kingdom, and the
Bahamas who require water treatment and pure water applications.
RainDance Water Systems
customers include: The United States Coast Guard, San Diego State University,
Palomar College, Quinlan Texas Elementary School, Hunter Industries, Sonance
Corp., Owens Brigam Medical, Coldwell Banker Realty, 1st Choice GMAC Realty,
Century 21 Realty, Austin Productions, Fairfield Country Club, and Auer
Precision Inc. just to name a few.
If you have any questions
on our large selection of commercial water treatment systems, including reverse
osmosis, desalination, bottled water equipment, and commercial water
purification filters please use our live online chat button, e-mail, or call
toll free 1-877-788-8387 to talk to a reverse osmosis representative. You may
also view our complete commercial reverse osmosis catalog @
www.raindancewatersystems.com
Contact us | View site map
 |
|
