The  "Green Series" - Mobile Non-Electric Portable Nano Water Softener & Drinking Water Filtration Systems

Have a whole house "Nano" or "RO" water treatment question or would like to request an online quote? Call 1-877-788-8387 - Email: Sales@SouthwestWaterTreatment.com or Use our Contact Form and we will have a water treatment representative contact you ASAP

Nano Drinking Water Filter

Portable Nano Water Softeners Water Filtration Systems

Designed to soften hard water minerals and filter mildly high TDS water without the use of salts or chemicals! Designed for city tap water and well water sources.

The Portable Nano series is designed to provide clean filtered water and hard water softening in areas where the available water supply contains high levels of undesirable hard water minerals, slightly brackish water, chlorine, or other contaminants. The key features of the Portable Nano models are portability, simplicity, rugged design, and the ability to operate on typical city treated tap or well water line pressure. Applications include portable mobile water softening and water filtration for Micro Breweries, Craft Beer Makers, Bars, Cafe's, Coffee & Tea Shops, Light Commercial, Whole House, Horses, Livestock, Wineries, Green Houses, Growers, Vacation Homes, Cabins, and Off-The-Grid Uses (non-electric options available), Great for Filling Storage Tanks, Barrels, Bottles, and Containers. Our mobile nano water filters are designed for the user to simply dolly our multipurpose water softener filtration system to your point of use, station to station, or simply add a storage tank and re-pressure pump and use as a whole house or commercial water softener drinking water filtration system. Available in Both Portable (as shown) and Stationary Non-Cart Options.

Easy to use ! Only 3 connections - Feed Water Input Connector: 3/4" Female Hose, Drain Water Connector: 3/4" Male Hose, Filtered Product Water Connector: 3/4" Male Hose - Standard Water Hose Connectors - Portable filtration available in 1500gpd & 3000gpd capacities. Contact Us for current state of the art portable nano water filtration pricing





The TSM Series is a compact RO system for whole house or light commercial applications that consistently produces high-purity water through average rejections rates of 98.5% making this ideal for whole house water usage needs. The systems are designed for capacities up to 1500 per day which can cater for households up to 8 people and provides the perfect solution to households that require highly purified water for health reasons, high levels of impurities water or just want to sourced their own water purification.

custom made to order whole home reverse osmosis water purification

WHOLE HOUSE REVERSE OSMOSIS WATER SYSTEMS

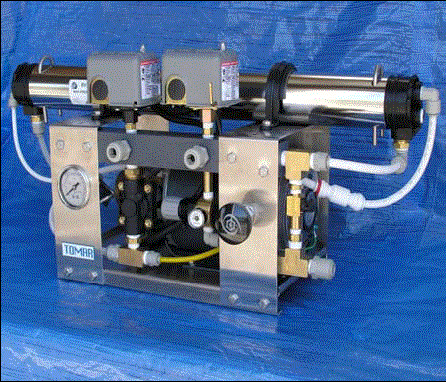

TSM QUALITY COMMERCIAL R.O. - User Friendly !
TSM series of commercial Reverse Osmosis water purifiers built to suit the needs and requirements of commercial pure water users.
This includes restaurants, coffee stores, convenience stores, micro breweries, supermarket produce and food preparation operations, misting and humidification systems, car wash facilities, and many other businesses that must have consistent high quality water for their daily operations. The key factors of reliability, serviceability, and consistent performance with minimum user intervention are achieved in the solid design of the TSM systems. Stainless steel is used throughout; in frame, pressure vessels and fastening hardware to provide the structural strength and corrosion resistance appropriate for a commercial appliance.

The TSM system design is optimized for either shelf mount or wall mount installation. The three models; 400 GPD, 800 GPD and 1200 GPD all occupy the same very compact footprint. This allows flexibility in accommodating the limited space available in most commercial utility equipment locations. Quick connect tube fittings on all system ports further simplifies installation and service. Most important, all TSM models incorporate the most reliable combination of proven reverse osmosis hydraulic design and state of the art Thin Film membrane elements to provide the long term performance expected by commercial users.

TSM FEATURES
All TSM Reverse Osmosis systems include the
following important quality features.
• Stainless Steel Frame & Pressure Vessels
• Thin Film Composite Membranes
• High Performance 3/4 HP Motors
• Positive Displacement Rotary Vane Pump
• Integral Hydraulic Manifold Assembly
• Fast Flush Control
• Low Feed Pressure Cutout Switch
• Tank Pressure Control Switch
• Delrin Orifice or Teflon Tube Flow Control
• Feed Inlet Solenoid Valve
• SS Needle Valve Pressure Control
• Product Tank Pressure Relief Valve
• Includes: TDS Meter -Tester. The Only Way To Know If Your Reverse Osmosis RO Membrane Is Performing Correctly - Tests for TDS - Total Dissolved Solids. A Must For All RO System Owners. Compare Incoming Feed Water To Treated Water. TDS is the sum of the mineral salts in water and if too high can result in objectionable taste, cloudy ice, interference with the flavor of foods and beverages and scale left behind in pipes, machinery, glass, etc.
• All Systems Wet Tested Before Shipping
Operating Parameters: Max TDS-2500ppm, Total iron is less than 0.3ppm, Manganese is less than 0.05ppm, Water hardness below 5 gpg.
FREE SHIPPING ON ALL TSM REVERSE OSMOSIS WITHIN THE CONTINENTAL UNITED STATES.
OVERSEAS SHIPPING AVAILABLE OR HAVE YOUR FREIGHT FORWARDER PICK-UP
NO CHARGE FOR EXPORT CRATING



FREE Reverse Osmosis Pretreatment Limited Time Offer:

Dual Sediment & Carbon Pre-Filter System Added FREE With Every TSM Reverse Osmosis Order.
Order any TSM SS Commercial Reverse Osmosis and we will include our dual sediment and carbon filter pretreatment system at No Charge.NOT VALID WITH ANY OTHER OFFER - SPECIAL OFFER ENDS SOON!
Included with TSM Reverse Osmosis orders only
Provides Reverse Osmosis Membrane Protection from Premature Fouling (loss of rejection & production).
Consists of (1) Sediment Filter Cartridge + (1) Carbon Block Filter Cartridge.
Sediment Filter is rated @ 5 microns and filters Suspended Solids (dirt, rust, sediment, etc).
Carbon Filter Significantly Reduces Chlorine and Organic Compounds.
Wall Mount Bracket & Filter Housing Wrench Included.
INCLUDED
FREE WITH EVERY TSM SERIES REVERSE OSMOSIS SYSTEM

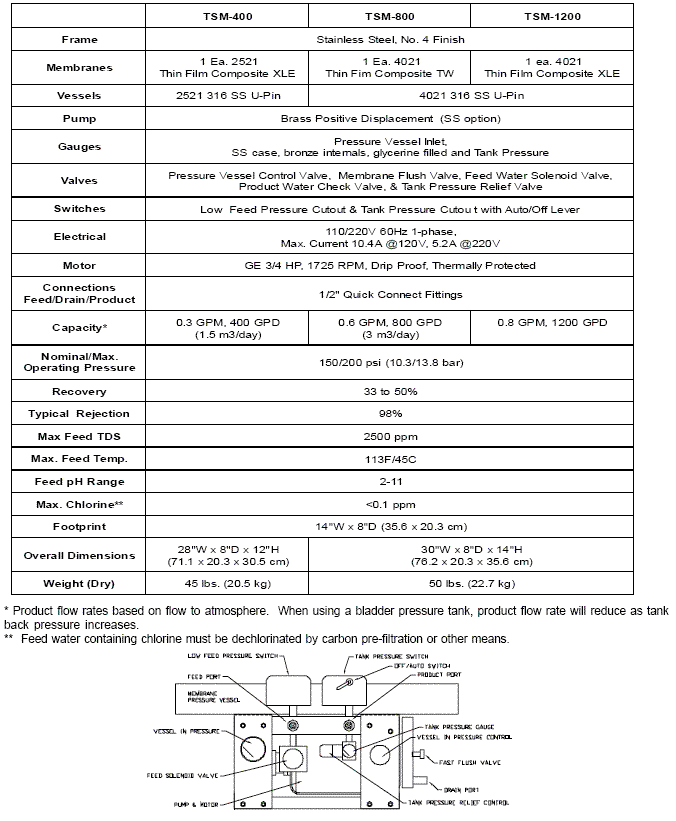

TSM Series Commercial Reverse Osmosis Specifications

Signature Stainless Steel TSM Series Commercial Reverse Osmosis Price Guide

TSM Reverse Osmosis Bulk Order Savings

For bulk ordering details please email: sales@southwestwatertreatment.com or fax 1-760-896-6999



Part #



Gallons Per Day



# of Elements



 Motor Hp



 Voltage



 Price



 TSM-RO-400



 400



 1



 3/4



 110/220

TSM-400: $2,998.00
[Add to Cart] [View Cart]
Order Online or Call Toll Free 1-877-788-8387
Email: sales@southwestwatertreatment.com
Free Shipping Within the Continental US


 TSM-RO-800



 800



 1



  3/4



 110/220

TSM-800: $3,198.00
[Add to Cart] [View Cart]
Order Online or Call Toll Free 1-877-788-8387
Email: sales@southwestwatertreatment.com
Free Shipping Within the Continental US


TSM-RO-1200



 1200



 1



  3/4



 110/220

TSM-1200: $3,298.00
[Add to Cart] [View Cart]
Order Online or Call Toll Free 1-877-788-8387
Email: sales@southwestwatertreatment.com
Free Shipping Within the Continental US

TSM Series SS Reverse Osmosis can be used with your existing atmospheric storage tank & pressure tanks Or choose from our options list below

TSM REVERSE OSMOSIS STORAGE TANKS:
Needed to store water from reverse osmosis system
Note: Our TSM reverse osmosis tanks include complete float switches for storage tanks (top tank for shut off)

 Approx. 35" dia x 81" ht. 300 Gallon Storage Tank
(Designed to fit through standard doorways)


Model: TK-300/Float
Price: $995.00ea *Free Shipping
[Add to Cart] [View Cart]

Approx. 31" dia x 72" ht. 200 Gallon Storage Tank
(Designed to fit through standard doorways)

Model: TK-200/Float
Price: $895.00ea *Free Shipping
[Add to Cart] [View Cart]
TSM REPRESSURE SYSTEM:
Draws water out of the TSM storage tank to your application

 Re-pressure pump rated @ 10gpm (110v)
Designed for atmospheric storage tanks listed above.

Model: RP-10GPM
Price: $695.00ea *Free Shipping
[Add to Cart] [View Cart]
TSM REVERSE OSMOSIS HYDRO-PNEUMATIC PRESSURIZED STORAGE TANKS:
No room for a storage tank and re-pressure pump? Use these pre-charged pressure tanks when you have limited space
 requirements and lower water volume demand. Perfect for labs, offices, wet bar, spot free rinse, and more

  30 gallon hydro-pneumatic pressure tank. 18 gallons in storage.
Dimensions 16” diameter x 44” high. Shut off valve included.
Volume is based on a 50psi shutoff and 15psi pre-charge

 Model: PT-30
Price: $650.00ea *Free Shipping
[Add to Cart] [View Cart]

40 gallon hydro-pneumatic pressure tank. 24 gallons in storage.
Dimensions 16” diameter x 57” high. Shut off valve included.
Volume is based on a 50psi shutoff and 15psi pre-charge

 Model: PT-40
Price: $750.00ea *Free Shipping
[Add to Cart] [View Cart]

 80 gallon hydro-pneumatic pressure tank. 48 gallons in storage.
Dimensions 25” diameter x 56” high. Shut off valve included.
Volume is based on a 50psi shutoff and 15psi pre-charge

 Model: PT-80
Price: $850.00ea *Free Shipping
[Add to Cart] [View Cart]


Reverse Osmosis Commercial Water Purification

TV Series commercial reverse osmosis systems are designed for applications such as glassware, rinsing, beverage, solution preparation, and numerous other scientific, commercial and industrial applications. Water purified by reverse osmosis has had often greater than 95%of dissolved ions, and 99% of most contaminants removed.

TV Series commercial reverse osmosis applications include: Agriculture, Livestock, Green Houses- Orchards, Groves, Food, Ice,and Beverage Industry, Bottled Water Stores, Pharmaceutical, Electronic Industry, Process Water, Chemical Industry, Electroplating Industry, Electrical Power Generating, Polymer Solutions and more.

*Water Efficient, Less Waste - Commercial Reverse Osmosis Systems - Our smaller water purification, such as the TSM RO series can achieve just about 50% recovery from the 400 GPD model to the 1200 GPD model. Our vertical reverse osmosis purification units range from about 65% recovery for the TV-2000 to 74% recovery for the TV-12000. Our larger TP & TH Industrial RO Systems run between 75% and 80% recovery. In comparison: *Note: High recovery rate percentages are based on a max. TDS of 1000mg/l (ppm) Recovery % will vary on higher tds levels.

Vertical Mount 2,000gpd - 12,000gpd Water Production

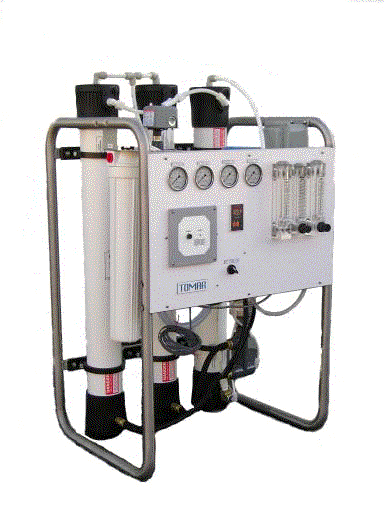

TV Series Commercial / Industrial Reverse Osmosis Water Purifiers

TV SERIES QUALITY COMMERCIAL REVERSE OSMOSIS - User Friendly, Compare Standard Features Listed Below:
TV series are designed for commercial /industrial applications where floor space is at a premium. All major system elements are mounted within a sturdy tubular stainless steel frame, welded for long term rigidity and open for easy access to all components. The TV system is a compact, heavy duty R.O. water purifier for users requiring 2000 to 12000 gallons per day water production. TV systems are fully equipped with the instruments and controls needed for reliable long term operation.

All 2,000gpd Through 12,000gpd TV Series Reverse Osmosis Systems Include The Following Features:
.. Stainless steel frame, structural ABS control panel
.. On / Off Switch
.. Float Switch For Atmospheric Tank
.. 20” Prefilter
.. Quick connect brine and product connections
.. Feed and membrane vessel pressure gauges
.. Product water flowmeter
.. Brine and recirculation flow meters with integral needle valves
.. Portable Water quality monitor: The Combo waterproof tester offer high accuracy EC/TDS and temperature measurements in a single tester! No more switching between meters for your routine measurements.
.. Conductivity water quality monitor
.. Low pressure cut off
.. High pressure switch
.. Patented PureFlush membrane flush feature
.. Low energy, thin film membrane element(s)
.. "The TV series of R.O. water treatment systems are equipped with a microprocessor based controller which monitors several functional conditions and regulates operation of the high pressure pump and control valves. The controller is connected to sensors which, depending on their state, allow the cyclic production of purified water or prevent operation due to abnormal conditions. The standard configuration of the controller monitors feed water supply pressure for minimum level, product water storage tank level for system start/stop conditions and product water conductivity for maximum set point value and for digital front panel display. Additional optional parameters that the controller is capable of monitoring include main pump high pressure set point, low feed water tank level and membrane flush cycle occurrence and duration. Front panel buttons and digital display allow operator adjustment of set points and flush parameters."

SPECIFICATIONS:
.. Dimensions: 22”W x 25”D x 49”H (2-4KGPD), 29”W x 25”D x 49”H (6-12KGPD)
.. Weight: 140 -200 lbs. depending on model
.. Output*: TV-2000, 4000, 6000, 8000, 10000, & 12000 GPD models
.. Membrane: Low energy, high rejection 4040 thin film type
.. Dissolved Solids Rejection: 98%
.. Prefilter: 10 micron polypropylene depth type
.. Power Req.: 120V, 1 Ph. to 460V 3 Ph.
.. Connections: Feed - 3/4”FPT, product and tank - 1/2” tube
.. Operating Parameters: Max TDS-5000ppm, Total iron is less than 0.3ppm, Manganese is less than 0.05ppm, Water hardness below 5 gpg.
.. FREE Shipping within the continental US

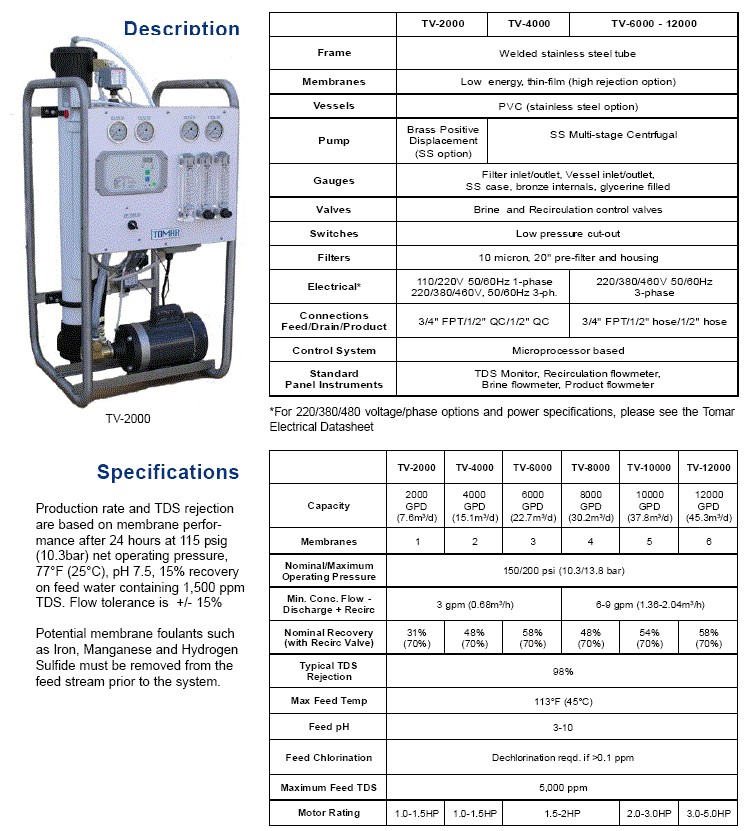

TV Series Commercial Reverse Osmosis Specifications

All 2,000gpd Through 12,000gpd TV Series Reverse Osmosis Systems Include Custom Features Listed Above



Part #



Gallons Per Day



# of Elements



 Motor Hp

 Price Guide



 TV-RO-2000



 2000



 1



 1.0-1.5

TV-2000: $5,898.00
[Add to Cart] [View Cart]

Order Online or Call Toll Free 1-877-788-8387
Email: sales@southwestwatertreatment.com
Free Shipping Within the Continental US


 TV-RO-4000



4000



 2



  1.0-1.5

TV-4000: $6,898.00
[Add to Cart] [View Cart]
Order Online or Call Toll Free 1-877-788-8387
Email: sales@southwestwatertreatment.com
Free Shipping Within the Continental US


TV-RO-6000



 6000



 3



 1.5-2.0

TV-6000: $7,898.00
[Add to Cart] [View Cart]
Order Online or Call Toll Free 1-877-788-8387
Email: sales@southwestwatertreatment.com
Free Shipping Within the Continental US


 TV-RO-8000



 8000



  4



  1.5-2.0

TV-8000: $8,898.00
[Add to Cart] [View Cart]
Order Online or Call Toll Free 1-877-788-8387
Email: sales@southwestwatertreatment.com
Free Shipping Within the Continental US


 TV-RO-10,000



 10000



  5



  2.0-3.0

TV-10,000: $9,898.00
[Add to Cart] [View Cart]
Order Online or Call Toll Free 1-877-788-8387
Email: sales@southwestwatertreatment.com
Free Shipping Within the Continental US


 TV-RO-12,000



 12000



  6



 3.0-5.0

TV-12000: $10,898.00
[Add to Cart] [View Cart]
Order Online or Call Toll Free 1-877-788-8387
Email: sales@southwestwatertreatment.com
Free Shipping Within the Continental US


We pride ourselves on our workmanship and our attention to detail.To ensure our customers that our systems will perform to their utmost potential WE RECOMMEND FAXING AN EXISTING WATER ANALYSIS OR HAVING YOUR WATER TESTED TO DETERMINE WHICH IS THE BEST SYSTEM FOR YOUR WATER CHEMISTRY. Once that recommendation is made, you can have complete faith that your system will work at its peak potential over a long period of time. You can choose to buy a reverse osmosis system "off the rack" and take your chances or you can let us tailor make a system based upon your specific needs. This is what sets RainDance Water Systems commercial reverse osmosis systems apart from all the rest.

Customer Assurance - If you have a current water analysis report, please fax it to us @ 760-896-6999, E-mail or send at least a 16oz sample of unfiltered water in a leak proof bottle to:
