Chemical-Free Water Treatment Systems for Well Water

The Deluxe Iron Max-UV Iron Filter & Iron Bacteria Treatment

Iron Filters, Manganese, Iron Bacteria Treatment, Sulfur Odor Solutions, UV Bacteria Water Treatment

Eco-Friendly, No Chemicals! No Chlorine Required ! Septic Friendly - No Salt Discharge !

Best Savings Of The Year - Deluxe Iron Max-UV Bacteria Treatment Package Sale Event Ends Soon !

Go Green Water Treatment Go Green Rebates

Premium Whole House Well Water Iron Filters and more..

The Deluxe Iron Max-UV Package Series: Our Very Best Most Comprehensive Non-Chemical Whole House Well Water Treatment Series

Our Deluxe Iron Max-UV Packages feature our Iron Max automatic self-backwashing whole house well water filtration designed for high iron removal, manganese, sediment and sulfur odor filtration - No chemicals or salt are added or needed to clean the system. Post bacteria and virus filtration is then provided by the Tested NSF/ANSI Standard 55, Class A Certified, Self Cleaning Hallett™15xs UV - Now Featuring Remote Wireless Monitoring !

Why NSF Standard 55 Class A Certified UV ? Proven Performance ! These units are ideal for use in any disinfection application where a third-party validated unit is required, specified or for applications that feed water to the public and must hold proof of performance as they need to comply with the drinking water regulations. Compare - some companies offer non-certified low cost uv units that cannot compare to the NSF testing and validation or the crossfire technology and self cleaning capabilities of this UV system.

Why Self-Cleaning Important ? No Salt Based Water Softener Needed ! Unlike most UV Systems the Hallett Crossfire Technology™ uses a stainless steel wiper to clean the inside of the quartz tube eliminating quartz fouling and the need for a water softener making abrasive quartz cleaning a thing of the past – saving money, costly quartz replacement and the environment.

Assurance: All Deluxe Iron Max-UV Packages include the Hallett™15xs UV System with Crossfire Technology™ - Tested NSF/ANSI Standard 55, Class A certification. On-Board Micro-Processor and Monitor- Patented dual smart UV sensors monitor lamp output (UVI) and water transmittance (UVT) continuously; three thermistors continuously monitor air temperature and water temperature; on-board LCD displays system performance, lamp hours, data logged operating events, and self-diagnosis including when to change lamps, and troubleshooting assistance for service issues; on-board LED’s indicate system status: OK, caution or alarm conditions. Save Time, Save Money, Self-Cleaning -316 SS patented automatic wiper-blade system keeps quartz free from scaling or bio-film. Hallett uv systems are constructed completely of corrosion resistant components and materials: cast and machined 316 stainless steel, anodized aluminum extrusions, ABS, and quartz; all fasteners are stainless steel; circuit boards are conformal coated to resist moisture. A natural process that adds no chemicals and does not affect the taste or odor of your water

We are a premium OneStopShop for all your well water filter needs: Well Water, Iron Filter, Water Borne Bacteria, E-coli Bacteria, Coliform Bacteria Removal, Manganese Filtration, Well Water Purification, Rotten Egg Odor, Whole House Well Water Filters, Private Well Systems, Community Well Water Systems, and No Salt Required or Chemicals to Add Options. Our goal is to provide you with the right advice and well water filtration product to suit your needs that will correct your problem well water and your impact on the environment. We are your total solution for Non-Chemical Water Treatment Products.


The Deluxe Iron Max-UV Package
No Salt, No Chemicals To Add Well Water Treatment Solutions !

Multipurpose Whole House Well Water Treatment
 Iron, Iron Bacteria, Manganese, Sulfur Odor, With Ultraviolet UV - Water Treated Without The Use Of Salts Or Chemicals.

The Iron Max iron removal and whole house well water filter systems

The Iron Max total home well water treatment and whole house iron removal system uses no salt or chemicals to provide cleaner laundry, cleaner kitchen, more functional and efficient plumbing and appliances, and cleaner bathrooms. Iron, manganese staining and discoloring as well as hydrogen sulfide gas "rotten egg odor" and suspended solids are filtered to provide tastier drinking water, as with coffee, juice, soups, tea, and ice.

 Water Quality Solutions For Water Well Owners

....RainDance Water Systems custom well water filters designed for effectiveness and ease-of-use
....Depth of experience with focus on well water filtration
....Customer service team that understand well water problems
....Long term cost saving & economical solutions
....Post iron filter water quality follow-up with free water analysis report
....Iron Max high level iron removal
....Lifetime warranty on tank, 5 year valve warranty

....Treatment Solutions: iron filters, manganese filters, sulfur odor removal, sediment, and much more!

Why do we feel this is the best UV water filter on the market today? Because you can have a NSF/ANSI 55 Class A Certified system that has passed all the rigorous testing by environmental agents worldwide. The UV Pure HallettTM system with Crossfire TechnologyTM is: The Most Effective UV Treatment.
...Risk free and Fail-safe
...Self-cleaning
...Virtually Maintenance Free
...Simple to Install
...Chemical Free - No Chlorine or Salt Based Water Softener Required
...Lamps are mounted in air and easily removable, so changing lamps is a simple two-minute process
...Warranty - lamps - one year; electronics - three years; mechanical - five years
...Compared to conventional UV systems, UV Pure’s HallettTM with Crossfire TechnologyTM gives a real-time indicator of water quality, is NSF certified, environmentally trustworthy, works in high TDS, requires no softener and is always self-cleaning.



Deluxe Iron Max-UV Well Water Filter Package

Multipurpose Well Water Treatment - Iron, Manganese, Sulfur Odor,

With Self Cleaning Ultraviolet UV - Water Treated Without The Use Of Salts Or Chemicals.

HOW IT WORKS: The Iron Max is a self-backwashing system that automatically removes the trapped particles within the filter bed and washes them down the drain. This is accomplished with the electronic control valve that is mounted on top of the Iron Max. This valve is controlled by a timer, that on a regular interval, initiates the backwash cycle that cleans the bed of filtration media and resets it for the next period of filtration. Our Iron Max includes a user friendly Digital Control Valve The Highest Quality Control Valve Available On The Market Today! Nearly All Of Our Competitors Still Offer An Older Mechanical (dial) Version Of This New Modernized Control Valve.

The system connects to the well water main line (after your pressure tank) and filters all the incoming water to your home. It requires a nearby power outlet for the control valve.The filtration media used is a mixed blend of state of the art high capacity filtration media. This blend of high capacity filtration media is designed for hydrogen sulfide gas "rotten egg odor", iron and manganese removal. After the Iron Max has provided all the necessary iron, manganese, sulfur odor, and suspended solid treatment the water enters the self cleaning UV treatment system. Assurance: All Deluxe Iron Max-UV Packages include the State Of The Art Hallett™15xs UV System with Crossfire Technology™ - Tested NSF/ANSI Standard 55, Class A certification. On-Board Micro-Processor and Monitor- Patented dual smart UV sensors monitor lamp output (UVI) and water transmittance (UVT) continuously; three thermistors continuously monitor air temperature and water temperature; on-board LCD displays system performance, lamp hours, data logged operating events, and self-diagnosis including when to change lamps, and troubleshooting assistance for service issues; on-board LED’s indicate system status: OK, caution or alarm conditions. Save Time, Save Money, Self-Cleaning -316 SS patented automatic wiper-blade system keeps quartz free from scaling or bio-film. Hallett UV systems are constructed completely of corrosion resistant components and materials: cast and machined 316 stainless steel, anodized aluminum extrusions, ABS, and quartz; all fasteners are stainless steel; circuit boards are conformal coated to resist moisture.

Compared to conventional UV systems, UV Pure’s Hallet™ with Crossfire Technology™ is the only system that gives a real-time indicator of water quality, is NSF certified, environmentally trustworthy, works in high TDS, requires no softener and is always self-cleaning.

UV Ultraviolet Drinking Water System Scorecard
The Hallett™ UV System with Crossfire Technology™ Scores 10/10

  Hallett System Conventional UV Ozone Reverse Osmosis Chlorinator Sand Filter
Real-time indicator of water quality X X X X X
NSF certified selected units X X X X
Works in high TDS X
No softener required X
Self-cleaning/low maintenance X X X X
Not hazardous to your health X X
Economical X X X X
Effective removal of all pathogens X X X X
Fail-safe shut-off selected units X X X X
Doesn’t put contaminants back in the environment X X X
SCORE 10/10 5/10 3/10 3/10 2/10 4/10

Pricing and detailed information can be found below. However, before you choose our whole house Deluxe Iron Max-UV water filter package we encourage you to compare our state of the art features with all other non-salt based water filter and UV systems in your local California area and nation wide on the internet. We are confident that we offer the highest quality whole house total home filtration and state of the art uv packages at the most reasonable prices.

The Total Home Deluxe Iron Max-UV Package

Chemical Free Well Water Treatment

  • Filters Iron ( Ferrous & Ferric), Manganese & Hydrogen Sulfide!
  • Prevents Staining on Bathroom & Kitchen Fixtures!
  • Prevents Staining on Dishes, Dishwasher, Washing Machine & Clothes!
  • Prevents " Rotten Egg Smell" (i.e. Hydrogen Sulfide Gas).
  • No Salt or Chemicals to Add!
  • No Brine Discharge!
  • Higher Quality Drinking Water!
  • The Iron Max Is Considered Maintenance Free
  • No Iron Max Routine Service Expense!
  • Simple to Install - Connects to the Main Supply Line of your House!
  • Provides Excellent Grooming & Cosmetic Benefits!
  • Reduces Water Heating Costs!
  • Excellent for Plant + Flower Growth & Quality!
  • Prolongs the Life of Water Heaters - Icemakers - Dishwashers - Coffeemakers - Plumbing Fixtures!
  • Household Cleaning & Maintenance is Reduced!
  • Clothes are Brighter & Cleaner!
  • Creates Clearer Water!
  • Attractive Heavy Duty Stainless Steel Cover Protects Against Harmful UV Rays!
  • The Iron Max is shipped with filtration media already in the tank.
  • Certain states and provinces regulate the sale of UV systems for residential applications. Some require NSF certified products, others have their own standards. Hallett™15xs UV systems are certified (NSF Standard 55 Class A certification)
  • UV Pure’s Hallett UV systems employ revolutionary Crossfire Technology that is self-cleaning, self monitoring, and fail-safe. The Hallett™ system with Crossfire Technology™ is designed to eliminate thepotential risks associated with conventional single lamp UV systems to provide Pure Safe Water.Always.™ Committed to exceeding drinking water purification standards, UV Pure has turned conventional technology inside-out by running the water inside the quartz sleeve and including two lamps mounted in air, dual smart sensors, elliptical reflectors and an optional fail-safe solenoid valve.
  • Crossfire Technology is complete UV disinfection: Crossfire Technology incorporates two proprietary high-output UV lamps, with elliptical reflectors, that target pathogens with radiation from 360, to deactivate pathogens and provide drinking water.
  • Crossfire Technology is engineered to be risk-free and fail-safe: Crossfire Technology uses dual smart UV sensors mounted in air, which are designed to not foul and are more reliable indicators of system performance than ordinary systems. The lamps are fan-cooled and maintain consistent levels of UV output for maximum pathogen deactivation.
  • Computerized alarms and an auto shut-off fail-safe valve are designed so that only safe water can enter your water system.
  • Crossfire Technology is self-cleaning: Crossfire Technology uses a stainless steel wiper to clean the inside of the quartz sleeve eliminating quartz fouling and the need for a water softener making abrasive quartz cleaning a thing of the past – saving money and the environment.
  • Crossfire Technology is virtually maintenance-free: Crossfire technology utilizes two lamps mounted in air, outside the quartz sleeve so maintaining a Hallett is as easy as changing a light bulb with nosystem draining required. The UV lamps require replacement after 12 months of operation and notification of lamp replacement is given via a warning one month in advance.
  • Each system is shipped with a Transient Voltage Surge Suppressor (TVSS)/Surge Protective Device (SPD) that has been certified to the UL 1449 standard by an NRTL/C and includes integral Over/Under Voltage shutoff protection.
  • Crossfire Technology is easy to install: Crossfire technology employs flexible stainless steel hoses with Female Iron Pipe (FIP) connections for quick and simple installation.
  • The Hallett 15xs has a smart display: The operator interface is designed to allow unprecedented access to information such as lamp lifetime, message history and UV intensity display.
  • The Hallett 15xs has a built-in purge valve: The purge valve is designated to eliminate the need to shutdown the unit in the event of no water flow for days (as long as water supply is present). It is designed to prevent build up metals and minerals on internal components. The purge valve also eliminates nuisance alarms from changing water transmittance conditions.
  • RainDance Water Systems can assist you in all of your water treatment needs. There's no need to go anywhere else. With over 80 years of combined experience in the water treatment business our support team can quickly & accurately answer all of your water filtration questions. Our resources include engineers and water treatment professionals which utilize virtually all known water treatment processes assuring our customers of the most economical, dependable, and environmentally friendly solutions. Our water treatment systems range from domestic residential households to large commercial and industrial operations.
  • Our water treatment customers include numerous commercial applications, residential households, business facilities and farms throughout the United States, Spain, Canada, Japan, U.K., Bahamas, Cayman Islands, Indonesia, Taiwan, and Malaysia.
  • A small sample of our water filter customer base includes: The U.S. Environmental Protection Agency (EPA), The U.S. Fish and Wildlife Federation, The United States Coast Guard, Washington St. National Park Service, San Diego State University, Palomar College, Quinlan Texas Elementary School, Fairbanks Farms, Hunter Industries, Sonance Corp., Owens Brigam Medical, 1st Choice GMAC Realty, Century 21 Realty, Coldwell Banker Realty, Austin Productions, Fairfield Country Club, and Auer Precision Inc. Just to name a few.
Customer Assurance - RainDance Water Systems has become a stable and reliable name in the water treatment industry. We take great measures to assure our customers the best quality, dependability, service, and reliability. We offer the following:
  • Member Ramona Chamber Of Commerce
  • Member Of The National Ground Water Association
  • Secure online ordering or call toll free 1-877-788-8387
  • Free shipping - Overseas exporting available.
  • The Iron Max is fully shipped with the digital control valve and filtration media already in the tank. We do not ship filtration media separately for our customers to pour in and assemble. We ship complete and ready to plumb!

Added Protection - Power spikes,surges and brownouts are a common occurrence in certain areas. A Panamax M4-EX Power Conditioner is now included with every Hallett 15xs ultraviolet uv system. The M4-EX provides protection from brownouts, spikes and high line voltage, and restarts automatically.

NEW SAFETY FEATURE - Remote Wireless Monitor Now Included
The Remote Monitor is a wireless alarm that can be positioned up to 164 feet (50m) from the UV Pure Hallett 15xs uv system. The remote device has a LCD display to provide status messages and an audible alarm that sounds in the event of a system fault – detailed information about the fault would be available at main unit. The remote device is hand held ,battery powered (9V) and can be conveniently located near the kitchen tap for a home or in the office for a school.

We strive to provide unparalleled water filter service to you, our customer. We offer several ways for you to contact us for information, sales or support:


Well Water Testing: Let our well water specialists provide the very best whole house water iron filter for your family. If you have already had your well tested please fax your water test results to 1-760-896-6999 Attention: S.W.W.T. Well Water Filter Recommendation (please include your email and contact information). Our staff will then review your water chemistry and make the best possible water filter recommendation.

 Don't have a water test? We offer free water testing ! Not all water filters will work on every type of water source.  Learn how to submit a water sample and have assurance that you are purchasing The Best Well Water Filter for your water chemistry. As a RainDance Water Systems customer you are also entitled to free well water and iron filter testing for as long as you own your well water filtration system. Learn more about our free water testing program @ Test My Water

You can now be certain that microbiologically safe drinking water is provided to every tap in the house. The Hallett is designed to outperform conventional systems by delivering highly effective UV dosage rates for the inactivation of pathogens, including:
• viruses
• bacteria
• cryptosporidium
• giardia
• legionella
• E. coli
• Total coliforms

Go Green Water Treatment Go Green Rebates

Deluxe Iron Max-UV-9 Package For house holds with 1-5 persons
























































































 Model #
Iron Max-9
Well Water Filter
 System Function
 Whole House Iron, Manganese, Hydrogen Sulfide & Rust Removal
 Dimensions
 9" dia. X 56" ht.
 Max. Flow Rate (gpm)
 6
Backwash Flow Rate (gpm)
 5
 Gallons to Backwash
 60
 Maximum Treatment Capacities
10 ppm Iron
( Ferrous & Ferric),
3 ppm Hydrogen Sulfide,
5ppm Manganese
 Max Pressure
 100psi
 pH Level Needed
 6.8 or Greater
 System Weight
 120lbs
 Plumbing Size
 1"
  Bypass Valve
 Yes, Included
  Stainless Steel Jacket
 Yes, Included
 Installation Instructions
 Yes, Included
  Tech Support
 Yes, Included

Iron Max Added Features:

The Iron Max systems are fully delivered with filtration media already in the tanks. We do not ship filtration media separately for our customers to pour in and assemble. New: User friendly no-tools needed to attach control valve to tank - simply screw control valve on tank when ready for installation. This saves time, money, and headaches for the self installer, your local plumber, or dealer !

The Iron Max well water filter does not use salts or discharge salts when backwashing. Perfect for those on septic systems

Our Iron Max uses NSF/ANSI Certified 61 Filtration Media for iron, manganese, and hydrogen sulfide gas.

Certain states and provinces regulate the sale of UV systems for residential applications. Some require NSF certified products, others have their own standards. The Hallett™15xs with Crossfire Technology™ are certified (NSF Standard 55 Class A certification) Boil water advisory? Township and city-managed water supplies aren’t failsafe, either. Boil water advisories are becoming more common. Beyond the inconvenience they cause, such advisories are a clear warning that the clean water we’ve taken for granted is becoming a scarce resource.

NEW SAFETY FEATURE - Remote Wireless Monitor Now Included
The Remote Monitor is a wireless alarm that can be positioned up to 164 feet (50m) from the UV Pure Hallett 15xs uv system. The remote device has a LCD display to provide status messages and an audible alarm that sounds in the event of a system fault – detailed information about the fault would be available at main unit. The remote device is hand held ,battery powered (9V) and can be conveniently located near the kitchen tap for a home or in the office for a school.

  UV Model #
Hallett 15xs
Rhe Hallett 15xs achieved NSF/ANSI 55 Class A certification with a dose of 55 mJ/cm2 The Hallett 15xs achieved NSF/ANSI 55 Class A certification with a dose of 55 mJ/cm2
 Flow Rate (gpm)
High Flow 14.6gpm
Height
35.8”
Width
7.5”
 Depth
9.3”
 Power
110V
 State Of The Art
Self Cleaning
316 SS patented automatic wiper-blade system keeps quartz free from scaling or bio-film
 Inlet/Outlet Port Size
1" NPT male 316 SS manifold connections; flexible 1” NPT SS female to female 12” hoses eliminate the need for hard pipe installations
 Number of UV Bulbs
2
 Visual Lamp Failure
Indicator System
 Yes
 Audible Lamp Failure
Indicator System
 Yes
 Elapsed Time Meter
 Yes
 Lamp Replacement Indicator
 Yes
UV Intensity Monitor
 Yes
Chamber Material
Hallett systems are constructed completely of corrosion resistant components and materials: cast and machined 316 stainless steel, anodized aluminum extrusions, ABS, and quartz; all fasteners are stainless steel; circuit boards are conformal coated to resist moisture
Lamp Maintenance
 Replace (2) UV Bulb
Every 12 Months

Order Online or Call Toll-Free 1-877-788-8387

Deluxe Iron Max-UV-9 Price: $3,365.00
Free Shipping Within The Continental U.S.
[Add to Cart] [View Cart]
Ask For Our Current Deluxe Iron Max-UV Rebate Offers
Instant Rebate, Military Rebate

Sign-up And Receive Your Deluxe Iron Max-UV Instant Rebate or Military Rebate

Deluxe Iron Max-UV-10 Package For house holds with 5-8 persons


























































































 Model #
Iron Max-10
Well Water Filter
 System Function
 Whole House Iron, Manganese, Hydrogen Sulfide & Rust Removal
 Dimensions
 10" dia. X 62" ht.
 Max. Flow Rate (gpm)
8
Backwash Flow Rate (gpm)
 7
 Gallons to Backwash
 60
 Maximum Treatment Capacities
10 ppm Iron
( Ferrous & Ferric),
3 ppm Hydrogen Sulfide,
5ppm Manganese
 Max Pressure
 100psi
 pH Level Needed
 6.8 or Greater
 System Weight
 140lbs
 Plumbing Size
  1"
  Bypass Valve
 Yes, Included
  Stainless Steel Jacket
 Yes, Included
 Installation Instructions
 Yes, Included
  Tech Support
 Yes, Included

Iron Max Added Features:

The Iron Max systems are fully delivered with filtration media already in the tanks. We do not ship filtration media separately for our customers to pour in and assemble. New: User friendly no-tools needed to attach control valve to tank - simply screw control valve on tank when ready for installation. This saves time, money, and headaches for the self installer, your local plumber, or dealer !

The Iron Max well water filter does not use salts or discharge salts when backwashing. Perfect for those on septic systems

Our Iron Max uses NSF/ANSI Certified 61 Filtration Media for iron, manganese, and hydrogen sulfide gas.

Certain states and provinces regulate the sale of UV systems for residential applications. Some require NSF certified products, others have their own standards. The Hallett™15xs with Crossfire Technology™ are certified (NSF Standard 55 Class A certification) Boil water advisory? Township and city-managed water supplies aren’t failsafe, either. Boil water advisories are becoming more common. Beyond the inconvenience they cause, such advisories are a clear warning that the clean water we’ve taken for granted is becoming a scarce resource.

NEW SAFETY FEATURE - Remote Wireless Monitor Now Included
The Remote Monitor is a wireless alarm that can be positioned up to 164 feet (50m) from the UV Pure Hallett 15xs uv system. The remote device has a LCD display to provide status messages and an audible alarm that sounds in the event of a system fault – detailed information about the fault would be available at main unit. The remote device is hand held ,battery powered (9V) and can be conveniently located near the kitchen tap for a home or in the office for a school.

  UV Model #

Hallett 15xs
Rhe Hallett 15xs achieved NSF/ANSI 55 Class A certification with a dose of 55 mJ/cm2 The Hallett 15xs achieved NSF/ANSI 55 Class A certification with a dose of 55 mJ/cm2
 Flow Rate (gpm)
High Flow 14.6gpm
Height
35.8”
Width
7.5”
 Depth
9.3”
 Power
110V
 State Of The Art
Self Cleaning
316 SS patented automatic wiper-blade system keeps quartz free from scaling or bio-film
 Inlet/Outlet Port Size
1" NPT male 316 SS manifold connections; flexible 1” NPT SS female to female 12” hoses eliminate the need for hard pipe installations
 Number of UV Bulbs
2
 Visual Lamp Failure
Indicator System
 Yes
 Audible Lamp Failure
Indicator System
 Yes
 Elapsed Time Meter
 Yes
 Lamp Replacement Indicator
 Yes
UV Intensity Monitor
 Yes
Chamber Material
Hallett systems are constructed completely of corrosion resistant components and materials: cast and machined 316 stainless steel, anodized aluminum extrusions, ABS, and quartz; all fasteners are stainless steel; circuit boards are conformal coated to resist moisture
Lamp Maintenance
 Replace (2) UV Bulb
Every 12 Months

Order Online or Call Toll-Free 1-877-788-8387

Deluxe Iron Max-UV-10 Price: $3,565.00
Free Shipping Within The Continental U.S.
[Add to Cart] [View Cart]

Ask For Our Current Deluxe Iron Max-UV Rebate Offers
Instant Rebate, Military Rebate

Sign-up And Receive Your Deluxe Iron Max-UV Instant Rebate or Military Rebate

Deluxe Iron Max-UV-12 Package For Higher Flow Rates & Larger Households





































































































 Model #

Iron Max-125-12
 System Function
 High Iron, Manganese, Hydrogen Sulfide & Rust Removal
 Dimensions
12" dia. X 62" ht.
 Max. Flow Rate (gpm)
18
 Flow Rate For Backwash (gpm)
15
 Approx. Gallons to Backwash
 60
 Maximum Removal Capacities
10 ppm Iron
 ( Ferrous & Ferric),
3 ppm Hydrogen Sulfide,
5ppm Manganese
 Max Pressure
 100psi
 Min Pressure
 30psi
 pH Level Needed
 6.8 or Greater
 Approx. System Weight
 225lbs
 Plumbing Inlet/Outlet Size
1.25"
 Easy To Use Digital Control Valve
 Yes
 Energy Saving 24V Transformer
 Yes
Stainless Steel
 Tank Jacket
 Yes
 Full Port Bypass
 Yes

Iron Max Added Features:

The Iron Max systems are fully delivered with filtration media already in the tanks. We do not ship filtration media separately for our customers to pour in and assemble. New: User friendly no-tools needed to attach control valve to tank - simply screw control valve on tank when ready for installation. This saves time, money, and headaches for the self installer, your local plumber, or dealer !

The Iron Max well water filter does not use salts or discharge salts when backwashing. Perfect for those on septic systems

Our Iron Max uses NSF/ANSI Certified 61 Filtration Media for iron, manganese, and hydrogen sulfide gas.

Certain states and provinces regulate the sale of UV systems for residential applications. Some require NSF certified products, others have their own standards. The Hallett™15xs with Crossfire Technology™ are certified (NSF Standard 55 Class A certification) Boil water advisory? Township and city-managed water supplies aren’t failsafe, either. Boil water advisories are becoming more common. Beyond the inconvenience they cause, such advisories are a clear warning that the clean water we’ve taken for granted is becoming a scarce resource.

NEW SAFETY FEATURE - Remote Wireless Monitor Now Included
The Remote Monitor is a wireless alarm that can be positioned up to 164 feet (50m) from the UV Pure Hallett 15xs uv system. The remote device has a LCD display to provide status messages and an audible alarm that sounds in the event of a system fault – detailed information about the fault would be available at main unit. The remote device is hand held ,battery powered (9V) and can be conveniently located near the kitchen tap for a home or in the office for a school.

  UV Model #
Hallett 15xs
Rhe Hallett 15xs achieved NSF/ANSI 55 Class A certification with a dose of 55 mJ/cm2 The Hallett 15xs achieved NSF/ANSI 55 Class A certification with a dose of 55 mJ/cm2
 Flow Rate (gpm)
High Flow 14.6gpm
Height
35.8”
Width
7.5”
 Depth
9.3”
 Power
110V
 State Of The Art
Self Cleaning
316 SS patented automatic wiper-blade system keeps quartz free from scaling or bio-film
 Inlet/Outlet Port Size

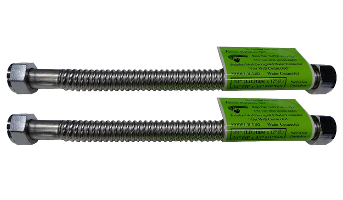

1" NPT male 316 SS manifold connections; flexible 1” NPT SS female to female 12” hoses eliminate the need for hard pipe installations
 Number of UV Bulbs
2
 Visual Lamp Failure
Indicator System
 Yes
 Audible Lamp Failure
Indicator System
 Yes
 Elapsed Time Meter
 Yes
 Lamp Replacement Indicator
 Yes
UV Intensity Monitor
 Yes
Chamber Material
Hallett systems are constructed completely of corrosion resistant components and materials: cast and machined 316 stainless steel, anodized aluminum extrusions, ABS, and quartz; all fasteners are stainless steel; circuit boards are conformal coated to resist moisture
Lamp Maintenance
 Replace (2) UV Bulb
Every 12 Months

Order Online or Call Toll-Free 1-877-788-8387

Deluxe Iron Max-UV-125-12 Price: $3,965.00
Free Shipping Within The Continental U.S.
[Add to Cart] [View Cart]

  • Go Green Water Treatment Go Green Rebates
  • We strive to provide unparalleled water filter service to you, our customer. We offer several ways for you to contact us for information, sales or support:


    FAQ's How The Iron Max Well Water System

    With State Of the Art Hallett UV System Works

    How The Iron Max Well Water Filter Works
    What is your Iron Max Well Water Filter used for?
    The Iron Max system has several uses. It is primarily used for well water residential applications where superior water is desired for both taste and functional use. It is also used for commercial applications where iron prevention is required, applications such as; whole house, business, irrigation, pre-treatment, Reverse Osmosis pre-treatment, etc.
    Is there any routine maintenance involved with the Iron Max:
    No, The Iron Max is considered a maintenance free whole house water filter. That is, there are no routine filters to replace and requires no chemicals. The Iron Max will filter and clarify your water by filtering iron, manganese, hydrogen sulfide gas, and suspended solids in the water. It will also improve the taste & odor of your water. The filtration media will need to be exchanged approximately every 8 to 10 years*. This is easily accomplished with the use of a wet & dry vacuum which you use to vacuum out the old filtration media from the top of the filter. You then replace it with a new bed of filtration media which will last approximately another 8 to 10 years*. This is the only maintenance that the system will require. *Some applications may require a more frequent replacement interval. Note: The Iron Max will not treat tannins, iron bacteria, sulfur reducing bacteria, colloidal iron, or organic iron. If these bacteria's are present you will need to add an oxidizer or chlorinate your well to prevent any iron bacteria or sulfur reducing bacteria from passing through the Iron Max well water filter. Your Iron Max instructions will include easy to follow well chlorination instructions and detailed information on iron bacteria.

    If the Iron Max does not use chemicals or sodium, what does it use?
    Just water is needed for backwashing! The Iron Max creates filtered water at every tap - it does not add anything to your water. The Iron Max System will oxidize and absorb iron, manganese, and hydrogen sulfide gas from your water and trap it within the filter. Approximately every 1-5 days*, the automatic control valve will initiate a backwash cycle for approximately 20 minutes and rinse the trapped particles down a drain or elsewhere. The system will then automatcially re-set itself to backwash for another 1-5 days*. * Some applications may require a more frequent backwash interval.
    How much well water iron, manganese, and hydrogen sulfide gas will the Iron Max filter?
    The Iron Max requires a pH of 6.8 or greater and will filter high levels of Ferrous and Ferric Iron up to 10ppm (mg/L), Manganese up to 5ppm (mg/L) Hyrogen Sulfide Gas up to 3ppm (mg/L) as well as unpleasant tastes and odors. . The Iron Max will not treat iron bacteria, sulfur reducing bacteria, colloidal iron, or organic iron. If these bacteria's are present you will need to chlorinate your well to prevent any iron bacteria or sulfur reducing bacteria from passing through the Iron Max well water filter. Your instructions will include easy to follow well chlorination instructions and detailed information on iron bacteria.
    No Salt ! The Iron Max water well system is unique in the following ways:
    1. Only one piece of equipment is needed for multiple water problems. This actually can create an overall cost savings.
    2. Ferrous and Ferric Iron, Manganese & Hydrogen Sulfide Gas (rotten egg smell) problems that often require the use of *chemicals such as potassium permanganate or chlorine, are eliminated. However, the use of an additional oxidizing agent (e.g. oxygen, chlorine, ozone, hydrogen peroxide, potassium permanganate, etc.) is recommended if iron bacteria, sulfur reducing bacteria, colloidal iron, organic iron or if tannins are present . Oxidizers will not adversely affect the media. As a matter of fact they will enhance its performance. In rare cases this pre-treatment may also be required if your water has a high ORP (Oxidation Reduction Potential) because highly reducing waters may cause premature exhaustion or even destruction of the filter media.
    3. The existence of local bans on salt based water equipment is not an issue with this system. No objectionable chlorides are dispensed into the drain system. The drain water from the Iron Max is safe for your septic, plants, etc..

    How Do I Order The Iron Max?
    The Iron Max well water filter may be purchased online using our secured online shopping cart located at the top of this webpage or by calling toll free 1-877-788-8387. Unlike, many water filter business's you find on the internet RainDance Water Systems is a true water treatment company. Specializing in residential, commercial, and industrial well and city water filtration systems. Knowledgeable tech support team and friendly customer service standing by if needed.



    State Of The Art Hallett™15xs with Crossfire Technology™ Ultraviolet Water Treatment System Specifications

    UV Dose The Hallett 15xs achieved NSF/ANSI 55 Class A certification with a dose of 55 mJ/cm2 The Hallett 15xs achieved NSF/ANSI 55 Class A certification with a dose of 55 mJ/cm2

    Minimum UV Transmittance: 75%

    Maximum Flow Capacity: 14.6 US GPM (55.3 LPM)

    Water Pressure: 10 psi (69 kPa) to 100 psi (690 kPa); tested to 240 psi (1.6 MPa)

    Dynamic Flow Restrictor Installed as standard

    Pressure Drop: 14 psi (96 kPa) at 75% of rated capacity

    Inlet and Outlet Connections 1" NPT male 316 SS manifold connections; flexible 1” NPT SS female to female 12” hoses eliminate the need for hard pipe installations

    Operating Pressure 100 psi, 690 kPa (tested to 240 psi, 1.65 MPa)

    Voltage 104 to 126 volts (North American models), 100 to 240 volts (international models)

    Maximum Power Consumption 175 watts

    Electrical Certification North American models: Intertek ETL (UL and CSA equivalent); international models: CE equivalent (IEC 60335.1 Ed4 Std.)

    Lamps Low pressure, high output proprietary lamps contain 30 mg of mercury (Hg); rated for 9000 hours of continuous use(approximately one full year)

    Maintenance Lamps are mounted in air and easily removable, so changing lamps is a simple two-minute process

    Electronic Ballast Auto power-regulated smart ballast is integrated with micro-processor control system; protected from power fluctuations

    Self-Cleaning 316 SS patented automatic wiper-blade system keeps quartz free from scaling or bio-film

    On-Board Micro-Processor and Monitor Patented dual smart UV sensors monitor lamp output (UVI) and water transmittance (UVT) continuously; three thermistors continuously monitor air temperature and water temperature; on-board LCD displays system performance, lamp hours, data logged operating events, and self-diagnosis including when to change lamps, and troubleshooting assistance for service issues; on-board LED’s indicate system status: OK, caution or alarm conditions

    Dry Contacts Included as standard for applications that require remote alarm or auto dialers

    Dimensions (Height, Width, Depth) 35.8” x 7.5” x 9.3” (90.8 cm x 19.0 cm x 23.6 cm)

    Weight - Dry 25.0 lbs. (11.3 kg)

    Weight - Wet 27.3 lbs. (12.4 kg)

    Warranty Lamps - one year; electronics - three years; mechanical - five years

    Corrosion Resistance Hallett systems are constructed completely of corrosion resistant components and materials: cast and machined 316 stainless steel, anodized aluminum extrusions, ABS, and quartz; all fasteners are stainless steel; circuit boards are conformal coated to resist moisture

    EPA FIFRA Certified EPA Est. No. 075213-CAN-001

    Patents US Pat 6,707,048; patents pending in Canada, Australasia, Europe, Eurasia, Mexico, Japan and UK

    Hallett 15xs System Pre-Treatment and Environmental Operating Conditions Conditions
    With Crossfire Technology™ - No Water Softener Required

    Water Conditions Effective Treatment Range

    Hardness: MAX 50 Grain (855 mg/L)

    Iron: MAX 3 mg/L (ppm)

    Manganese: MAX 0.5 mg/L (ppm)

    % UV Transmittance: MIN 75% MAX 100%

    pH: MIN 6.00 MAX 9.00

    Total Dissolved Solids (TDS) MAX 1000 mg/L

    Water Temperature MIN 1 C (34 F) MAX 38 C (100 F)

    Air Temperature MIN 7 C (45 F) MAX 38 C (100 F)

    Turbidity: MAX 1 NTU

    Water Pressure: MIN 5 PSI (34 kPa) MAX 100 PSI (690 kPa)

    What sets this UV apart from all others? Aside from NSF 55 Class A third party certification, The State Of The Art Hallett™15xs UV System offers automatic quartz cleaning. Other UV systems require routine quartz sleeve cleaning maintenance. This process requires you to shut down the uv and remove the quartz sleeve and inspect it to make sure it is clean and that scale has not deposited on its surface. To clean, you typically have to spray with an acidic filter cleaner and wipe dry with a soft cloth. Repeat the process if scale remains. You can now avoid this routine maintenance and possible quartz sleeve breakage with the State Of The Art Hallett™15xs UV System Crossfire Technology uses an automatic stainless steel wiper to clean the inside of the quartz sleeve eliminating quartz fouling and the need for a water softener making abrasive quartz cleaning a thing of the past – Saving time, money and the environment. Unparalleled Well Water Treatment - Compare the features of our Deluxe Iron Max-UV Package with any other home/light commercial well water systems on the market !

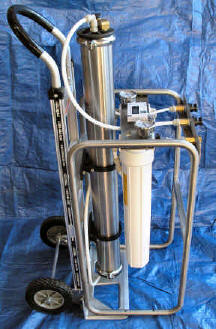

    Portable Water Purification Systems for Livestock, Horses, Horse Barns, Stables, Horse Ranches, Greenhouses, and more.

    The Stockwater series of purification systems provide clean, healthy drinking water for horses and other livestock as well as greenhouses and organic gardens in areas where the available water supply contains high levels of minerals or other undesirable contaminants. The key features of the Stockwater models are portability, simplicity, rugged design, and the ability to operate on typical tap or well water line pressure. Learn more here

    The Stockwater systems can be wheeled out to greenhouses, gardens, barns, corrals and other livestock areas, connected to a water supply hose and turned on to supply fresh, good tasting water to troughs or other watering containers. The most important part of the Stockwater system is the special membrane that creates the purified water. Unlike the membranes used in most reverse osmosis systems which remove up to 99% of dissolved minerals the Stockwater membrane removes only about 80 to 90%. This means that the Stockwater purified water contains the partial mineral content vital for health and good taste while eliminating excessive hardness and off taste components which can cause lower than normal hydration in livestock.  Learn more here

    The Stockwater series of purification systems provide clean, healthy drinking water for livestock in areas where the available water supply contains high levels of minerals or other undesirable contaminants. The key features of the Stockwater models are portability, simplicity, rugged design, and the ability to operate on typical tap or well water line pressure.  Learn more here



      RainDance Water Systems P.O. Box 2312 Ramona, Ca. 92065 : U.S. Toll Free: 1-877-788-8387 / Outside The U.S. 760-788-8387

    Contact us | View site map
