Ultraviolet Water Disinfection Systems For Bacteria
Free Well Water, Farms, & Livestock Drinking Water
No Chemicals to add!
UV water disinfection provides a broad spectrum solution for
bacteria, viruses,
cryptosporidium and
giardia, while producing no added chemicals. While the
majority of UV systems being installed are still non-certified
systems, many consumers are asking us about uv systems certified to
NSF standards due to the growing awareness of government regulated,
small, public, and home water systems. Learn more about our
selection of NSF 55 Class A Certified UV Systems at our
UV Super Store
How Ultraviolet Disinfection System
Works
As water flows past the UV lamp(s) in a UV
disinfection system, microorganisms are exposed to Ultraviolet light
energy. Ultraviolet light alters the DNA material in cells so that
bacteria, viruses, molds, algae and other microorganisms can no longer
reproduce. The microorganisms are considered dead, and the risk of
disease from them is eliminated. These Ultraviolet Disinfection Systems
are designed for commercial & industrial applications. The process of UV
Disinfection is accomplished without adding any harmful chemicals to
your drinking water and does not distort the water or effect its pH
value. UV Disinfection has an effective kill rate of 99.99% of most
living microorganisms such as bacteria & viruses.
Compare against
UV Lights -
Effective in killing off
bacteria and viruses such as:
- Coliform Bacteria
- Leptospira Interrogans
(Infectious Jaundice)
- Salmonella Typhosa
(Typhoid Fever)
- Bacteriophage (E. coli)
- Hepatitus Virus
- Chlorella Vulgaris
- Influenza Virus
- Legionella Pneumophila
(Legionnaires' Disease)
|
UV
Disinfection is suitable for Industrial & Commercial
applications:
- Agriculture, Dairy,
Livestock, Irrigation Water
Food & Beverage
Industry
Beer Breweries,
Wineries
Drinking Water
Ice Companies
Well Water
Aquaculture
Restaurants, Schools,
Hospitals, Hotels
|
Commercial UV bacteria &
virus water treatment system specifically designed to meet the
demanding microorganism control requirements in high purity water
systems. Typical Industrial disinfection applications include:
Dairy, manufacturing, food & beverage, schools, hospitals, produce
growers, agriculture, farms, livestock, pharmaceutical, electronics,
cosmetics, breweries, chemical plants, bottling plants, marine
industries, petroleum industries, drinking water, textile industry,
swimming pools, microelectronics, universities, blood banks, medical
centers, cosmetics and food industries, and research industries.
Available flow rates from 10 gallons per minute – plumb 2 or more in
parallel for higher flow rate applications! -
The optional COMM center displays dose in real-time and can monitor up to 9
UV systems - that’s up to 270 gpm!

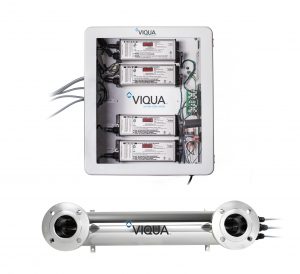

VIQUA SHFM-140 170gpm
High Flow UV Disinfection System

SHFM-140 VIQUA UV
Retail Price: $7,595
Special Price: $5,979.00


 |
Model # |
SHFM-140 170gpm VIQUA UV System |
Operating Conditions |
Flow Rate: 170gpm @ 30mJ/cm2 Dose
Ambient Temperature: 36F-104F
Pressure Range: 5-125 psi |
Dimensions |
Inlet/Outlet: 3" Flange
Chamber: 36" x 6" x 14"
Controller: 17.5" 19.5" 8.2"
Shipping Weight: 96 Pounds |
Electrical |
Voltage: 100-240v Frequency: 50-60hz
Power Consumption: 350w |
General |
Polished 316 L Stainless Reactor Chamber (4)
Sterilume-HO High Performance Lamps Visual Lamp-On &
Audible Lamp Failure Indicators |
Warranty |
10yr for Chamber 1yr for UV Lamps & Sensors 3yr on
Electrical/Hardware Components |
Parameters |
99.99% destruction of
bacteria, viruses, and protozoan cysts Total iron is
less than 0.3ppm Hydrogen Sulfide is less than
0.05ppm Suspended Solids is less than 1 NTU
Manganese is less than 0.05ppm Water Hardness below 7
gpg |
SHFM-140
170GPM High Flow UV System Features
✔ Ease
of Maintenance: The control panel allows for quick
accessibility to the controllers with visibility to the
components and power isolation.
✔ Reliable: High-performance
UV lamps, rigorously tested to provide consistent output over
the entire lamp life (9000 hours).
✔ State
of the art UV sensor technology to give you real-time
performance feedback, for added peace of mind.
✔ Convenient: Features
countdown timer with digital display and audible lamp change
reminder for ease of maintenance.
✔ Durable: The
high-quality 316L SS chamber provides long-term reliability.
✔ Application: Perfect
for a wide range of commercial applications including small
businesses, hospitals, dentist offices, etc..
✔ Includes: UV
Sensor, End-of-Life-Timer counts down days until lamp
replacement, control panel (enclosure) .

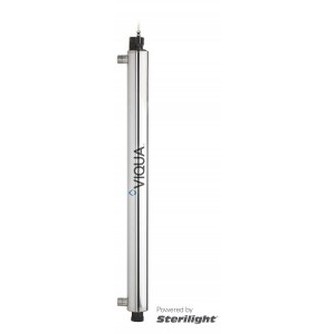

Commercial/Industrial 45-80gpm Ultraviolet UV Systems
Our Model H+ & K+ systems are ideally suited for light
commercial applications such as daycares, hospitals, dentist
offices and other facilities focused on providing safe
water. Adds state of the art UV sensor technology
Continuous feedback of UV disinfection performance for added
peace of mind at recommended flow rates up to 80 gpm
UV water purification, hotel/motel, apartment and condominium
buildings, beverage, food processing, schools, restaurants,
cafeterias, farms - dairy, cattle, chicken, swine, horse, and
more. Go With More Flow - Flow rates reach
up to 80gpm with a single system - plumb 2 or more in parallel
for higher flow rate applications!

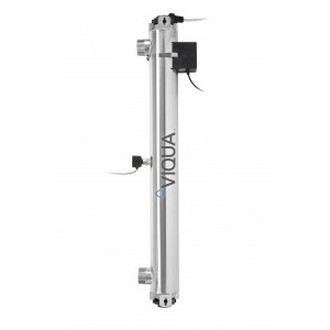

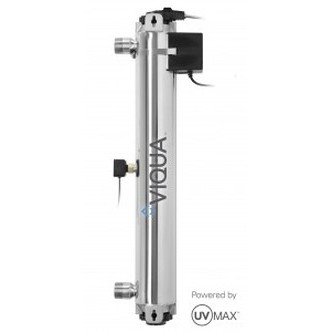

VIQUA UV Professional Series
Disinfection Systems |
 |
 |
VIQUA Model # |
650652 H+ PLUS |
660002-R K+ PLUS |
Flow Rate @ 30 mJ/cm2 Dose |
*45gpm |
**80gpm |
UV Chamber Dimensions |
31"L x 4"D |
41"L x 4"D |
Voltage |
120/240v - 50-60hz |
120/240v - 50-60hz |
Power Consumption |
160 Watts |
230 Watts |
Inlet/Outlet Port Size |
1.25" x 1" FNPT |
2" MNPT |
Commercial UV Pricing
*Free Shipping Within The Continental US
|
650652 H+ PLUS: $2,139.00

 |
660002-R K+ PLUS: $4,839.00

 |
Replacement Bulb Pricing *Bulbs should be
replaced every 2 years
|
1 (602856) Bulb x $269.00ea
 |
1 (602856) Bulb x $269.00ea
 |
VIQUA
Commercial H+ / K+ UV System Features
✔ CoolTouch Fan
✔ Visual Power On
✔ Audible Lamp Failure /
Audible Lamp Replacement Reminder
✔ UV Sensor
✔ Chamber Material:
316L. SST
✔ We're here when you need us! Unmatched
customer and tech support with multiple channels of
communication at all hours of the day and night - 365 days a
year!
UV Operating Parameters: Max Water Hardness
(120ppm - 7gpg), Iron (0.3ppm), Manganese (0.05ppm), Max
Temperature (104 F), Min Temperature (32 F), Max Pressure
(125psi), Vertical Installation Only. Plumb 2 or
more UV system in parallel for higher flow rate
applications!
*Flow rate shown is based on 85% UV transmittance (UVT) and
end of lamp life. **Flow rate shown is based on 95% UV
transmittance (UVT) and end of lamp life.

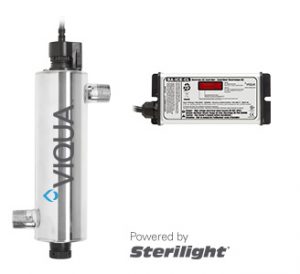

NSF 55 Class A Certified UV Disinfection Series
If you are required to install a NSF 55
Class A Certified UV Water Treatment
System we have the solution!
RainDance Water Systems Viqua UV Pricing &
Information - NSF 55 Class A UV Ultraviolet systems
provides treatment for flow rates of 10gpm to 30gpm.
Commercial Businesses and home owners can now take drinking
water into their own hands & avoid the worry of Boil Water
Advisories (BWA) that are constantly in the news. This
system offers a compact water treatment solution with a
small footprint for simple installation. Equipped to
inactivate chlorine-resistant parasites such as
Cryptosporidium and Giardia, harmful bacteria like E.Coli
and viruses not visible to the naked eye. The Viqua
NSF Certified UV systems use a
revolutionary lamp with twice the output of current high
output lamps, giving you compact single-lamp systems that
are half the size of their predecessors. Revolutionary
amalgam lamps last up to two years, reducing maintenance
requirements. The CoolTouch significantly reduces water
temperature and does not waste any water. Easy Quarter-Twist
Assembly: A quarter-twist to the positive stop and you're
done. No tools and no risk of over tightening. The power
supply has an intuitive interface showing you the
performance of the system. All connections are color coded
simply plug and play! These systems are suited for home or
light-commercial type applications with constant flow
demands. They are simple to install and maintain, allowing

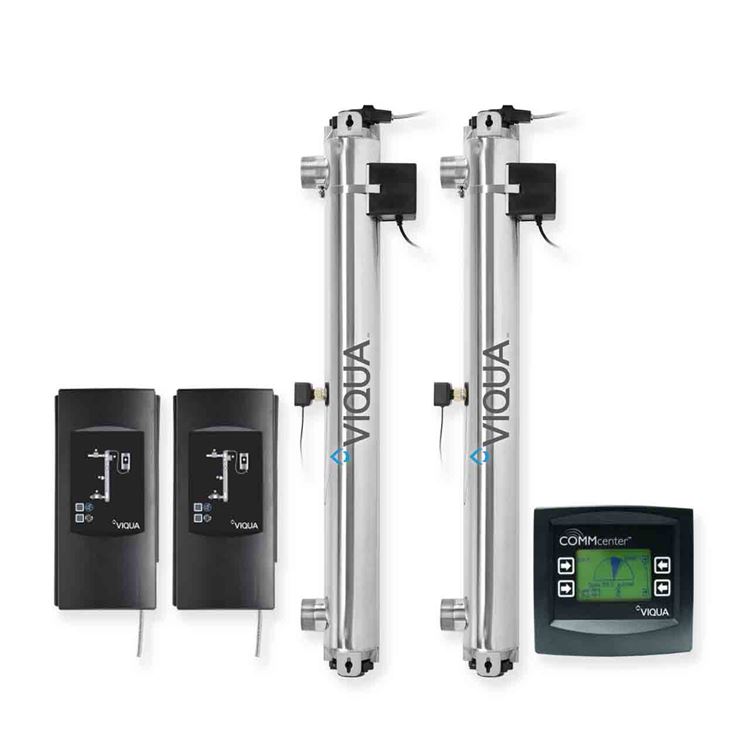

for a simple water solution! Plumb 2 or more UV
systems in parallel for higher flow rate applications! The
optional COMMcenter displays dose in real-time and can
monitor up to 9 UV systems - that's up to 270 gpm!
UPGRADE: Add an optional
COMMcenter commenter, this displays UV dose in real-time,
alarm history, lamp hours and other performance parameters
for 1 or up to 9 systems.
Using a Mini-SD Card - The
COMMcenter has the ability to store data on the performance
of your UV system(s) to a mini-SD card, Mini-SD cards are
available at various retailers. Information is recorded
every minute and a 512MB card should store 18 years worth of
information. To use this data-logging feature, simply insert
a mini-SD card into the slot on the left side of the
COMMcenter. To retrieve information simply insert the SD
card into a card reader that is attached to your
computer. Perfect for applications, such as DOH that may
require you to generate daily reports as to the status of
the uv system. The optional feature is available for the
PRO-10, PRO-20 and PRO-30 UV System. The COMMcenter can be
purchased with any PRO-10, 20, or PRO30 UV or can be added
at a later date.

RainDance PRO-10 UV Exclusive Offer: Absolute Sediment UV
Protection
FREE Sediment/Turbidity Pre-Filtration System -
Did you know uv systems require at least a 5 micron sediment
prefilter - this allows optimum disinfection performance! Order
today and we will Include a FREE sediment prefitler package
with a *3 year supply of prefilters. Special Offer Includes:
(3) Replaceable Cartridges, 4.5" x 10" Filter Housing w/ 1"
Plumbing Ports, Mounting Bracket, and Wrench for easy
maintenance. *Offer
valid on PRO-10 UV orders - offer will end without notice *
3 year supply when filters are replaced once a year
VIQUA NSF 55 High
Output UV Disinfection Systems |
 |
 |
 |
VIQUA Model # |
PRO-10 |
PRO-20 |
PRO-30 |
Flow Rate *Rated Flow for NSF 55 Class
A Certification |
10gpm |
20gpm |
30gpm |
UV Chamber Dimensions |
22"L x 4"D |
31"L x 4"D |
41"L x 4"D |
Power Supply Dimensions |
13" x 6.5" |
13" x 6.5" |
13" x 6.5" |
Voltage |
120/240v - 50-60hz |
120/240v - 50-60hz |
120/240v - 50-60hz |
MAX Current / Power Consumption |
1.2 Amp / 120 Watts |
1.6 Amp / 160 Watts |
2.4 Amp / 230 Watts |
Lamp Power |
100 Watts |
140 Watts |
200 Watts |
Inlet/Outlet Port Size |
1.25" MNPT 1" FNPT "combo" |
1.25" MNPT 1" FNPT "combo" |
1.25" MNPT 1" FNPT "combo" |
UV Pricing
*Free Shipping Within The Continental US
|
PRO-10: $1,925.00

 |
PRO-20: $2,359.00

 |
PRO-30: $3,095.00

 |
Replacement Bulb Pricing *Bulbs
should be replaced every 2 years
|
1 (602854) Bulb x $199.00ea
 |
1 (602855) Bulb x $229.00ea
 |
1 (602856) Bulb x $269.00ea
 |
VIQUA PRO UV System Features
✔ CoolTouch Fan
✔ Visual Power
On / Visual Lamp Life Remaining
✔ Audible Lamp
Failure / Audible Lamp Replacement Reminder
✔ UV Sensor &
Flow Meter
✔ Chamber
Material: 316L. SST
✔ We're here
when you need us! Unmatched
customer and tech support with multiple channels of
communication at all hours of the day and night -
365 days a year!
UV Operating Parameters: Max
Water Hardness (120ppm - 7gpg), Iron (0.3ppm),
Manganese (0.05ppm), Max Temperature (104 F), Min
Temperature (32 F), Min/Max Pressure (10/100psi),
Vertical Installation Only. Plumb 2 or more
UV system in parallel for higher flow rate
applications! - The optional COMMcenter
displays dose in real-time and can monitor up to 9
UV systems - that's up to 270 gpm!
UPGRADE: Add
an optional COMMcenter commenter, this displays UV
dose in real-time, alarm history, lamp hours and
other performance parameters for 1 or up to 9
systems - 512MB SD Card Included! Note:
COMMcenter can be added now or ordered at a later
date.
Add-on Price
COMMcenter: $560.00

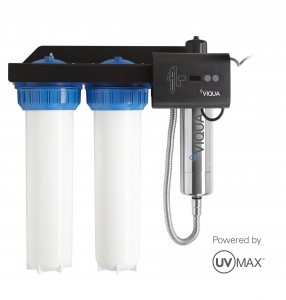

VIQUA IHS22-D4 12gpm
Integrated UV Disinfection & Filtration System
Treats Bacteria, Lead, Chlorine, Sediment, Cloudy Water
& Turbidity

IHS22-D4 Complete Integrated UV Price: $1,149.00
*Online Special Sale Price!


 |
Model # |
IHS22-D4 12gpm VIQUA UV System |
Operating Conditions |
Flow Rate: 12gpm @ 30mJ/cm2
Dose Ambient Temperature: 36F-104F
Pressure Range: 5-125 psi |
Dimensions |
Inlet/Outlet: 3/4" NPT
Overall Dimensions: 25.5" x
12" x 28" Weight: 35lbs |
Power |
110v 60hz 50W |
Prefilters |
(1) 20" 5 micron Sediment, Debris, Turbidity
Prefiltration (1) 20" Carbon Taste, Odor, &
Lead Removal Prefiltration |
Parameters |
99.99% destruction of
bacteria, viruses, and protozoan cysts Total
iron is less than 0.3ppmm Hydrogen Sulfide is
less than 0.05ppmm Suspended Solids is less
than 10ppmm Manganese is less than 0.05ppmm
Water Hardness below 7 gpg |
Viqua IHS22-D4 Integrated UV features:
-
High Flow 12gpm Space
Saving Design!
-
Perfect integrated UV water purification
for whole house, drinking water systems,
well water, city water, livestock, and
more.
-
System comes supplied with sediment
filter and carbon block to filter
lead, insecticides, herbicides,
pesticides, chlorine, color, chemical
tastes, cloudy water and sediment
particles commonly found in water.
Reduces the need for expensive
pre-treatment systems!
-
The special lamp plug ensures that no
one can power the UV lamp if it's not in
the UV chamber.
-
Lamps and sleeves are assembled together
for ease of handling. They can be
replaced separately, in minutes and
without tools.
-
The reference card outlines the most
important system functions and
maintenance for quick, on-the-spot
questions.
-
Our high output validated UV lamp is
engineered to treat variable water
conditions.
-
The system comes equipped with high flow
filters allowing the water pressure to
remain consistent.
-
Bracket is a gauge steel that is powder
coated for both durability and
aesthetics.
-
NEW LCD controller features a large
backlit display for easy reading,
simultaneously displaying lamp life
remaining, support contact information,
and lamp replacement reminder that
indicates when the lamp needs to be
replaced, ensuring continued water
safety. The intuitive, user friendly
menu is dealer programmable and allows
the user to quickly find the replacement
parts needed for the system by using the
replacement parts menu, as well as on
board quick-reference instructions for
system troubleshooting.
-
We're here when you need us! Unmatched
customer and tech support with multiple
channels of communication at all hours
of the day and night - 365 days a year!
|

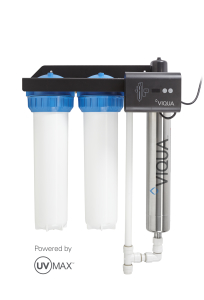

VIQUA IHS22-E4 22gpm
Integrated UV Disinfection & Filtration System
Treats Bacteria, Lead, Chlorine, Sediment,
Cloudy Water & Turbidity

IHS22-E4 Complete Integrated UV Price: $1,495.00
*Online Special Sale Price!


 |
Model # |
IHS22-E4 22gpm VIQUA UV System |
Operating Conditions |
Flow Rate: 22gpm @ 30mJ/cm2
Dose Ambient Temperature: 36F-104F
Pressure Range: 5-125 psi |
Dimensions |
Inlet/Outlet: 1" NPT
Overall Dimensions: 25" x 12" x
36.6" Weight: 38lbs |
Power |
110v 60hz 83W |
Prefilters |
(1) 20" 5 micron Sediment, Debris, Turbidity
Prefiltration (1) 20" Carbon Taste, Odor, &
Lead Removal Prefiltration |
Parameters |
99.99% destruction of
bacteria, viruses, and protozoan cysts Total
iron is less than 0.3ppmm Hydrogen Sulfide is
less than 0.05ppmm Suspended Solids is less
than 10ppmm Manganese is less than 0.05ppmm
Water Hardness below 7 gpg |
Viqua IHS22-E4 Integrated UV features:
-
High Flow 22gpm Space
Saving Design!
-
Perfect integrated UV water purification
for large home, craft beer breweries,
food & beverage business, drinking water
systems, well water, city water,
livestock, restaurants, and more.
-
System comes supplied with sediment
filter and carbon block to filter
lead, insecticides, herbicides,
pesticides, chlorine, color, chemical
tastes, cloudy water and sediment
particles commonly found in water.
Reduces the need for expensive
pre-treatment systems!
-
The special lamp plug ensures that no
one can power the UV lamp if it's not in
the UV chamber.
-
Lamps and sleeves are assembled together
for ease of handling. They can be
replaced separately, in minutes and
without tools.
-
The reference card outlines the most
important system functions and
maintenance for quick, on-the-spot
questions.
-
Our high output validated UV lamp is
engineered to treat variable water
conditions.
-
The system comes equipped with high flow
filters allowing the water pressure to
remain consistent.
-
Bracket is a gauge steel that is powder
coated for both durability and
aesthetics.
-
NEW LCD controller features a large
backlit display for easy reading,
simultaneously displaying lamp life
remaining, support contact information,
and lamp replacement reminder that
indicates when the lamp needs to be
replaced, ensuring continued water
safety. The intuitive, user friendly
menu is dealer programmable and allows
the user to quickly find the replacement
parts needed for the system by using the
replacement parts menu, as well as on
board quick-reference instructions for
system troubleshooting.
-
We're here when you need us! Unmatched
customer and tech support with multiple
channels of communication at all hours
of the day and night - 365 days a year!
|
VIQUA S8Q-PA 10gpm Light
Commercial UV Disinfection System

S8Q-PA VIQUA Price: $449.00
*Online Special Sale Price!


 |
Model # |
S8Q-PA 10gpm VIQUA UV System |
Operating Conditions |
Flow Rate: 10gpm @ 30mJ/cm2
Dose Ambient Temperature: 36F-104F
Pressure Range: 5-125 psi |
Dimensions |
Inlet/Outlet: 3/4" MNPT
Chamber Length: 35.4"
Chamber Diameter: 2.5"
Power Supply: 7.3" x 3.2" 2.5" |
Electrical |
Voltage: 100-240v
Frequency: 50-60hz Power
Consumption: 46w |
General |
Polished 304 L Stainless Reactor Chamber
Visual Lamp-On & Audible Lamp Failure Indicators |
Warranty |
7yr for Chamber 1yr for UV Lamps & Probes
5yr Pro-Rated on All Other Components |
Parameters |
99.99% destruction of
bacteria, viruses, and protozoan cysts Total
iron is less than 0.3ppm Hydrogen Sulfide is
less than 0.05ppm Suspended Solids is less
than 10ppm Manganese is less than 0.05ppm
Water Hardness below 7 gpg |
S8Q-PA 10GPM UV System Features
✔ New Sterilume-EX
UV Lamps:
these hard glass, 254 nm ultraviolet lamps feature
advanced proprietary lamp technology allowing for
consistent UV output over the life of the lamp coupled
with uniform temperature distribution. The result is
that Sterilume-EX
lamps provide the required output over the entire 9000
hour lamp life.
✔ Easy
lamp replacement without having to disconnect the water
supply.
✔ Drain
port for reactor chamber flushing.
✔ Maximum
UV output with the highest quality quartz sleeve.
✔ Open
end quartz sleeve and aluminum gland nuts for optimum
operating temperature and sealing efficiency.
✔ We're here
when you need us! Unmatched customer
and tech support with multiple channels of communication
at all hours of the day and night - 365 days a year!

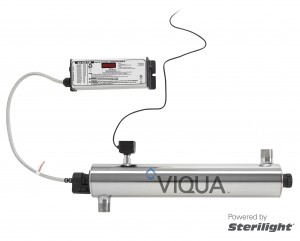

VIQUA VH-410M 18gpm UV
Disinfection System w/ UV Intensity Monitor

VH-410M VIQUA Price: $869.00
*Online Special Sale Price!


 |
Model # |
VH-410M 18gpm VIQUA UV System |
Operating Conditions |
Flow Rate: 18gpm @ 30mJ/cm2
Dose Ambient Temperature: 36F-104F
Pressure Range: 5-125 psi |
Dimensions |
Inlet/Outlet: 3/4" FPT, 1"
MPT Combo Chamber Length: 28.8"
Chamber Diameter: 3.5"
Power Supply: 7.3" x 3.2"
2.5" |
Electrical |
Voltage: 110v
Frequency: 60hz Power
Consumption: 60w |
General |
Polished 304 L Stainless Reactor Chamber
Audible Lamp Failure Indicators Lamp Timer
UV Intensity Monitor |
Parameters |
99.99% destruction of
bacteria, viruses, and protozoan cysts Total
iron is less than 0.3ppm Hydrogen Sulfide is
less than 0.05ppm Suspended Solids is less
than 10ppm Manganese is less than 0.05ppm
Water Hardness below 7 gpg |
Viqua VH-410M 18GPM UV System Features
✔ High-efficiency,
compact, UV disinfection system
✔ Designed
for commercial scale flow rates up to 18 gpm
✔ Superior
Lamp Technology - High Output
✔ We're here when you need
us! Unmatched customer and tech support with
multiple channels of communication at all hours of the
day and night - 365 days a year!
UV
Intensity Monitor
✔ Features
"count down" timer display and lamp change reminder
✔ Additional
1 Year Controller Warranty
✔ Additional
3 Years Chamber Warranty
✔ Greater
Space Efficiency
✔ S-Shaped
Chamber Configuration
✔ UL
Certified

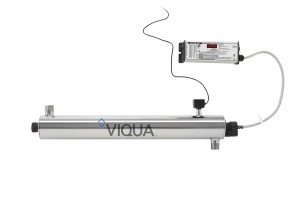

VIQUA VP-600M 30gpm UV
Disinfection System w/ UV Intensity Monitor

VP-600M VIQUA Price: $1,099.00
*Online Special Sale Price!


 |
Model # |
VP-600M 30gpm VIQUA UV System |
Operating Conditions |
Flow Rate: 30gpm @ 30mJ/cm2
Dose Ambient Temperature: 36F-104F
Pressure Range: 5-125 psi |
Dimensions |
Inlet/Outlet: 1" MPT
Chamber Length: 30.7"
Chamber Diameter: 3.5"
Power Supply: 7.3" x 3.2" 2.5" |
Electrical |
Voltage: 110-220v
Frequency: 60hz Power
Consumption: 60w |
General |
Polished 304 L Stainless Reactor Chamber
Audible Lamp Failure Indicators Lamp Timer
UV Intensity Monitor |
Parameters |
99.99% destruction of
bacteria, viruses, and protozoan cysts Total
iron is less than 0.3ppm Hydrogen Sulfide is
less than 0.05ppm Suspended Solids is less
than 10ppm Manganese is less than 0.05ppm
Water Hardness below 7 gpg |
Viqua VP-600M 30GPM UV System Features
✔ High-efficiency,
compact, UV disinfection system
✔ Designed
for commercial scale flow rates up to 30 gpm
✔ Superior
Lamp Technology - High Output
✔ We're here when you need
us! Unmatched customer and tech support with
multiple channels of communication at all hours of the
day and night - 365 days a year!
UV
Intensity Monitor
✔ Features
"count down" timer display and lamp change reminder
✔ Additional
1 Year Controller Warranty
✔ Additional
3 Years Chamber Warranty
✔ Greater
Space Efficiency
✔ S-Shaped
Chamber Configuration
✔ UL
Certified
 |

|
